Dell Vostro 3400 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. iVhtWYZcepH6cL3V

    • Slide the battery release latch to the unlock position.

  2. jTAbAYlobxvOjUFk

    • Slide the other battery release latch to the unlock position.

  3. X2PEbVRXyVUBLNYe

    • Slide the battery and remove it from the computer.

  4. VJVSPVvDWCWmUvXS

    • Remove the screws that secure the base cover to the computer.

  5. vSo1PvRyUvQ3nBxR

    • Lift up the base cover and remove it from the computer.

  6. SgPGwHlLofWBuydW

    • Push apart the memory retention clips to release the memory module.

  7. kOA4GxTsXULw4tFH

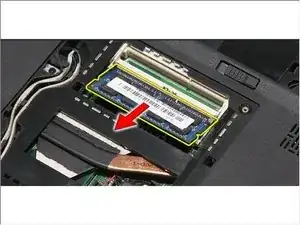

    • Remove the memory module from its connector on the system board.
