Dell Vostro 3450 Display Assembly Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 9
Dell Vostro 3450 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

33

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

  1. xeVwMBRGRTSgfDTj

    • Slide the left and the right battery release latches to the unlock position.

  2. R31yTQ3UOL3J6kKj

    • Slide the battery and remove it from the computer.

  3. RBmqT5Wgg4AKyKTr

    • Press the keyboard down. Pry the keyboard with the use of a flat-head screwdriver towards the display to reveal the first keyboard retainer.

  4. ut36PVjv11Ig3dJc

    • Pry up the second keyboard retainer.

  5. hZXOQPhLXCHCaCxD

    • Pry up the third keyboard retainer.

  6. m64KcoE2FDLsBk2O

    • Pry up the fourth keyboard retainer.

  7. tAYaHBZLTJUUNHRl

    • Pull up the keyboard from the palm rest.

  8. UoZASIOe1bjWxkpN

    • Release the latch on the system board connector, then disconnect the keyboard cable.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

    It is also required to loose the screw just beside the latch mentioned in this step.

    fernandolordao -

    These (and Dell’s) instructions don’t mention that you have to disconnect a second keyboard cable. It’s a 4 pin ZIF connector, you can see it in the picture above, already disconnected.

    BorpoIT -

  9. D4GTMY1jWY1YojlX

    • Loosen the screw that secures the memory door.

  10. dn2EirSMEWHXeSvC

    • Pry up the memory door near the screw hole, lift and remove it.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  11. QM46yVHjVFdKZiG3

    • Remove the screw that secures the optical drive to the computer.

  12. DsWOQj5esOdiuXIP

    • Gently pry the optical drive out of the computer.

    Make sure you have loosen the screw beside the keyboard cable latch, mentioned in the comments of Step 8.

    fernandolordao -

  13. iASJ4KO2D3IIYpXM

    • Remove the screws that secure the optical drive bracket.

    You can skip this step when replacing the HDD, it isn’t necessary at all.

    BorpoIT -

  14. GITfUCPN1bVySYQh

    • Remove the optical drive bracket from the optical drive module.

    You can skip this step when replacing the HDD, it isn’t necessary at all.

    BorpoIT -

  15. Hpktn5KJ5mPQdSgR

    • Remove the screws in the battery compartment.

  16. pqLaY2AempXliikK

    • Remove the screws in the optical drive compartment.

  17. HDROuAXxAqFuTKYT

    • Remove the rubber from the bottom base on the right side.

  18. oYHnS4KQdIZfjsuW

    • Remove the rubber from the bottom base on the left side.

  19. 3EQorLXOLolVlDMR

    • Remove all the screws from the bottom base.

  20. 5yBHoCjNswhSHHGQ

    • Flip the computer around and remove the screws that secures the palm rest.

  21. j215aMQlLbrTFsVB

    • Release the latches on the system board connector, then disconnect the touch pad cable and the finger printer cable.

  22. ENBi1mQfGgEGJR6B

    • Release the latch on the system board connector and then disconnect the power button cable.

  23. KE1IMf3vFfaoY4a2

    • Release the latch on the system board connector and then disconnect the hot key cable.

  24. b2uP61kSKLIVoJpW

    • Pry up the right side of the palm rest.

    There are a couple of latches on the front of the palm rest which should be released before you move on to the sides. I think one of those latches is released in the picture above. The iFixit opening tool was helpful here, and I used some of the iFixit opening picks to stop the corner latches from closing while I worked on others.

    BorpoIT -

  25. NCT3YWHdLiGhqlfV

    • Pry up the left side of the palm rest.

  26. JLyf4OlnR5ql1HRW

    • Pry up the sides of the palm rest and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  27. LBm2TkrbuM43OKPG

    • Remove the screws that secure the display hinge.

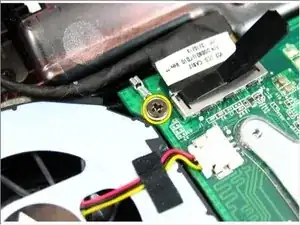

  28. 1hXLrYkCjlhqqaDX

    • Loosen the screw that secures the low-voltage differential signaling (LVDS) cable.

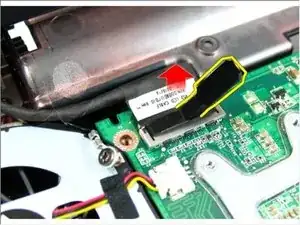

  29. qVAhs1aSfdFSdMQX

    • Disconnect the LVDS cable from the system board.

    By pulling it upwards?

    jeffreychc -

    Indeed, pull straight up using the integrated handle on the connector. It required more force than I expected, and popped off suddenly once I pulled hard enough.

    BorpoIT -

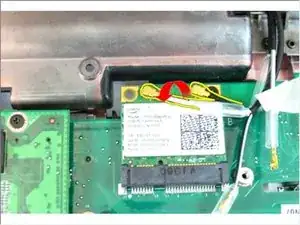

  30. qcStcIJhMKwTlUkK

    • Disconnect the wireless local area network (WLAN) antenna cable.

    You can skip this step if you decide not to remove the display.

    BorpoIT -

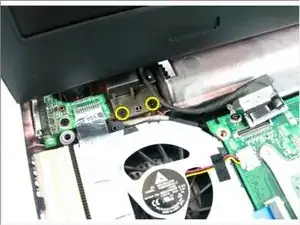

  31. M2ZKt2ZQjJjlCxHb

    • Remove the screws that secure the left hinge.

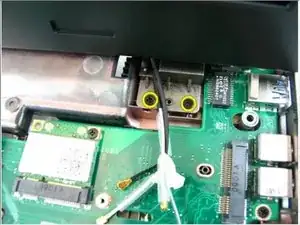

  32. R4offUGEwqCJbQwR

    • Remove the screws that secure the right hinge.

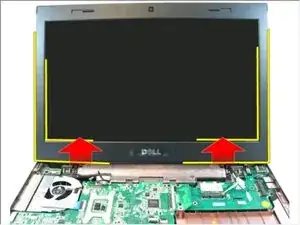

  33. GsRE24rb6McGhYyk

    • Lift the display assembly and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
