Dell Vostro 3450 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3450 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. xeVwMBRGRTSgfDTj

    • Slide the left and the right battery release latches to the unlock position.

  2. R31yTQ3UOL3J6kKj

    • Slide the battery and remove it from the computer.

  3. D4GTMY1jWY1YojlX

    • Loosen the screw that secures the memory door.

  4. dn2EirSMEWHXeSvC

    • Pry up the memory door near the screw hole, lift and remove it.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. bG6TMMS6ZAalL4wG

    • Pry the retention clips away from the memory module until it pops up.

  6. GfSMeeR1d3TLbj2R

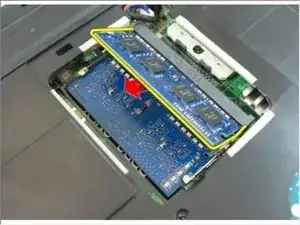

    • Remove the memory module from its connector on the system board.
