Dell Vostro 3459 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3459 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. XiPqdMVuSWPVJtkk

    • Slide the release latch outwards to unlock the battery.

  2. V4ReFERkrOPQ2IWl

    • Lift the battery to remove it from the computer.

  3. sRSm5WnLSo6wmqb3

    • Remove the screws that secure the access panel to the computer.

    • Lift the access panel away from the computer.

  4. VNcIVHgiXWGFpTD6

    • Lift to release the tab.

    • Disconnect the hard-drive cable from the system board.

    • Remove the screws that secure the hard drive to the computer.

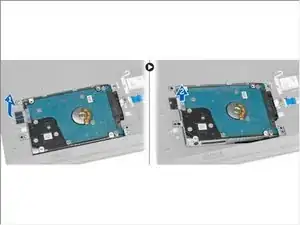

  5. UJybWRIICJL2ZHWl

    • Remove the tape and lift the hard drive to remove it from the computer.

  6. RBjITIWUsrKIpMML

    • Remove the screws that secure the hard drive to the bracket.

    • Lift the hard drive away from the bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
