Dell Vostro 3460 Base Cover Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3460 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Base Cover.

  1. PLPu6fw6Q4efAnv1

    • Slide the battery latches to release the battery.

  2. MqOoPVPelmbQPrmo

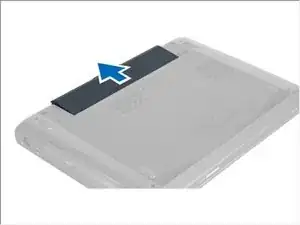

    • Lift and remove the battery from the computer.

  3. tkZFnSUg4plgioSi

    • Remove the screw(s) that secures the cover to the computer. Lift the cover upwards.

  4. 6qGVcy6GOYpOTREb

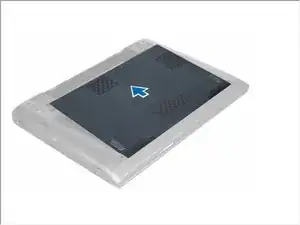

    • Slide the cover outwards to release it from the notches on the computer.

  5. r6fHPr4e1dXoQCUr

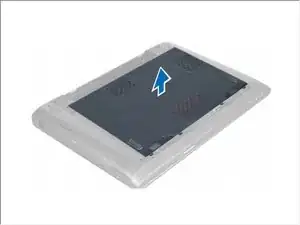

    • Lift the cover upwards and away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
