Einleitung

  1. c415i2FgcxWEtmnS
    • Flip the computer over.

    • Slide the battery release latch to the unlock position.

  2. FKgxBCSGRMRiUmMT
    • Slide the other battery release latch to the unlock position.

  3. C6WXLJtOCRTxI3VP
    • Slide the battery and remove it from the computer.

  4. sTpEkaPL3CEKyVOE
    • Turn the laptop over and remove two screws securing the service cover.

  5. qrSEmfBmTDMk3tPT
    • Prise up the service cover and remove it from the computer. Clips along the edges can be snapped open except for those on the left hand edge (as shown in the photo) which have to be disengaged after all the others by romoving the cover in the direction shown.

    • On resassembly, insert the clips on the left hand edge then snap all te others home by applying firm pressure along the other edges of the cover.

  6. YqHUWIdvnjsUbrZJ
    • Push apart the memory retention clips to release the memory module.

  7. fsUgPRiFCDnkaimV
    • Remove the memory module from its connector on the system board.

  8. XQUBr6U1cTrmp1L4
    • Remove the screws that secure the hard-drive assembly to the computer.

  9. BFfuIdqSAbKCspoV
    • Slide the hard-drive assembly towards the center of the computer.

  10. gUEEJcb2ZuHqVt6a

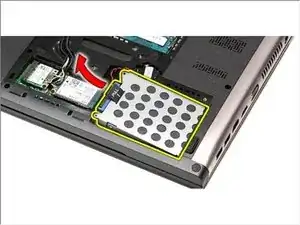

    • Lift the hard-drive assembly up and away from the computer.

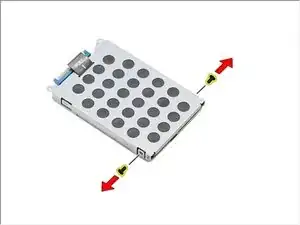

  11. ugpCaR4vGmaXTlQd
    • Remove the screws that secure the hard-drive bracket to the hard drive

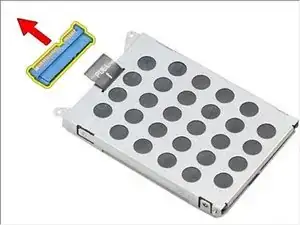

  12. XdGJWPPlrrt5Pgrd
    • Remove the hard-drive adapter from the hard-drive assembly.

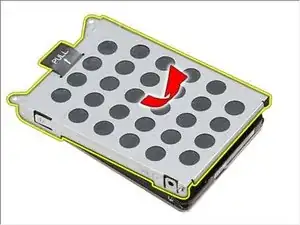

  13. qGY2QxE3fLnBOG4F
    • Lift the hard-drive bracket up and away from the hard drive.

  14. ERaM6DjNRfB4ghxy
    • Remove a single screw from under the service cover.

    • You should now be able to slide the CD/DVD drive out.

  15. yXUhtLOV3pWYUOUm
    • Gently snap off the two aerial connectors from the WiFi card.

    • On reassembly they simply snap back on with firm pressure, but first make sure they are positioned correctly over their sockets.

    • Remove a single screw adjacent to one of the aerial sockets retaining the wWiFi card, then lift it out.

    • On resassembly, ensure that the WiFi card is fully inserted into its sovket before angling it down and reinserting the screw.

  16. JnJ1PaDRFLTtxTZS
    • There are 4 tabs along the top of the keyboard and two along each side which need to be released. The iFixit Jimmy is ideal for this, but you can use a thin spatula.

    • Feel along the gap with the jimmy until you come to a tab. Angle the jimmy away from the keyboard in order to release the tab. As you release each tab, gently lift that part of the keyboard in order to encourage the next tab to disengage, but take care not to bend it.

  17. N1MMDAdGfSntCZAB
    • Lift the top edge of the keyboard and turn it over, laying it flat.

    • Very gently lift the black retaining tab on the keyboard ribbon and withdraw the ribbon.

    • On reassembly, make sure the ribbon is fully inserted in its socket before pressing down the tab.

  18. GVpHheyP3BjLIjHT
    GVpHheyP3BjLIjHT
    GOilrETPNTLJYESh

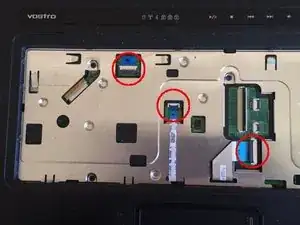

    • In the well beneath the keyboard, disconnect 3 ribbon cables by gently lifting the locking bar then withdrawing the ribbon.

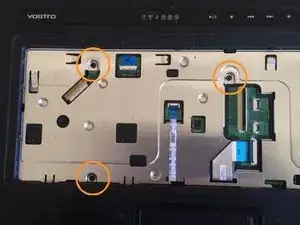

    • Remove 3 screws.

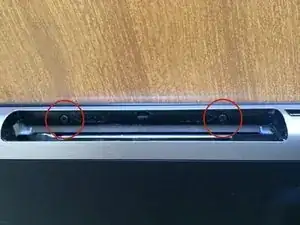

  19. KcWbMSD4ZTT4Mre1
    • With the laptop closed, lay it upside down on the bench and remove 2 screws from the CD/DVD bay opening.

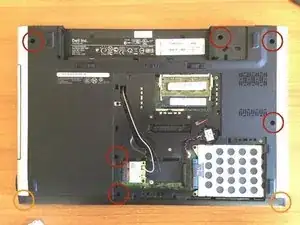

  20. eptbNYLvTV132Edp
    • Remove 6 screws from the base of the laptop.

    • Using a small flat screwdriver or a pointed knife, remove the adhesive covers from 3 more screws in the front corners of the laptop. Remove the screws.

    • DO NOT remove 3 silver-headed screws between the WiFi card and the hard disk. These secure the processor heat sink.

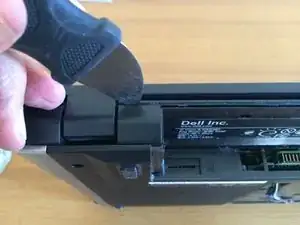

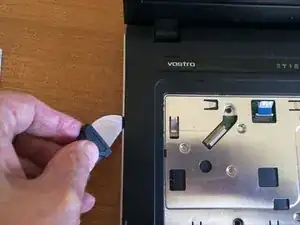

  21. pV1Fu3TnJ5GRrcYT
    pV1Fu3TnJ5GRrcYT
    HKiGuMQoo1XQNycw
    QDAniZYiVCHWYTcf

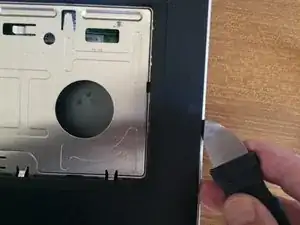

    • Separate the top cover of the laptop by inserting a jimmy or similar tool into the crack and angling it so as to lift the cover. Do this on both sides, te rear, and the front.

    • Lift off the front cover. If you feel you are having to force it, it'll be because you omitted to remove one or more screws.

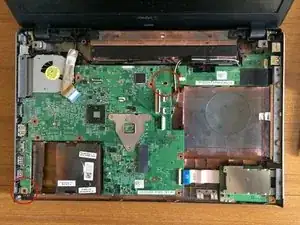

  22. 5fqR55GBwm2jgwNs
    5fqR55GBwm2jgwNs
    X4BeY2jXDG3lRAGX

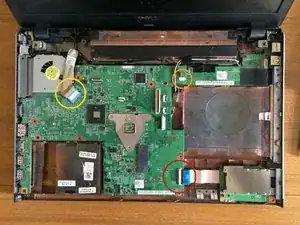

    • Lift the locking tab and remove the ribbon cable on the right hand lower edge of the motherboard.

    • Disconnect the mu;it-way connector on the top edge of the motherboard. Do not pull on th wires, but rather rock the body of the connector from side to side until it easily pulls free.

    • Gently lift off the video cable connector.

  23. x3RYCWd3AYUIG54n
    • Remove two screws securing the motherboard.

    • On reassembly, note that these two screws (only) have triangular indicator marks against them. The other holes are for screws which you removed from the bottom of the laptop.

    • You should now be able to lift out the motherboard out of the shell, gently easing the connectors on the left hand edge out of the shell.

    • As you lift out the motherboard it's a good idea to lean the screen against some kind of support as it will no longer be counter-balanced by the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
