Dell Vostro 3546 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3546 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 15 Minuten

Einleitung

  1. WYeDPAp3DKUgfXoB

    • Slide the latches outward [1].

    • Release the battery [2].

  2. j1BSsbpwELDjo2WU

    • Loosen the screw that secures access panel to computer.

    • Slide the access panel from the computer.

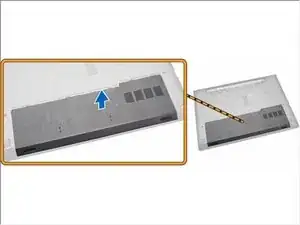

  3. AOpSlBu5UHraDySk

    • Lift the access panel off the computer.

  4. ChA4UoGk3BCZAZ2H

    • Pry the securing clips away from the memory module until it pops up.

    • Remove the memory module from its socket on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
