Dell Vostro 3550 RAM Replacement

Geschrieben von: Nickolas LaForce
  • Kommentare: 2
Dell Vostro 3550 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide will walk through all the necessary steps in order to replace the RAM for the Dell Vostro 3550. RAM is one of the most common components that users upgrade in their devices. The primary reason why users decide to upgrade their RAM is to be able to run more applications at the same time on their computer.

  1. XJFTki1QKER1pSfr

    • Slide the release latches to unlock the battery.

    What size is the battery? Does it have a pigtail?

    R. Castano -

  2. jnWm5I41ILAK2KsA

    • Slide the battery and remove it from the computer.

  3. sXuDqJNBUJksdiyW

    • Remove the three 7mm Phillips #0 screws that secure the access panel to the base of the computer.

  4. YOdSaqwfSfyvfJRY

    • Lift the access panel up at an angle and remove it from the computer.

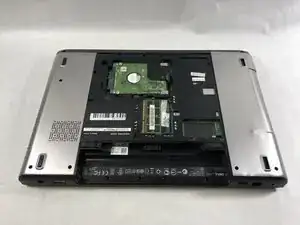

  5. 6hCPnPAaKE2cuDQI
    6hCPnPAaKE2cuDQI

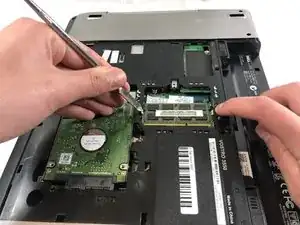

    BYvUoW6ldA1VJPp4

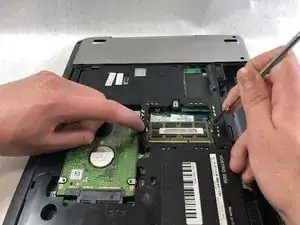

    pIaocepfiwIY15WJ

    • Push outward on the two release tabs securing either side of the top RAM module.

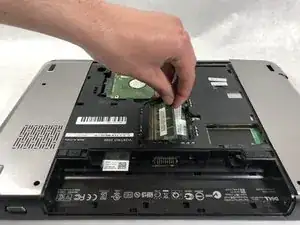

  6. b1qqCgrTTlsJ2JsQ
    b1qqCgrTTlsJ2JsQ

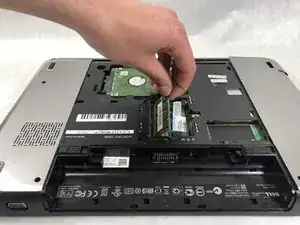

    fYVXXvBWEGZunJVZ

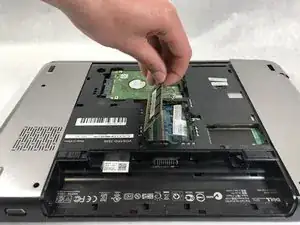

    dpasFcSKevYEWF2V

    • Lift the top stick of RAM upward away from the motherboard.

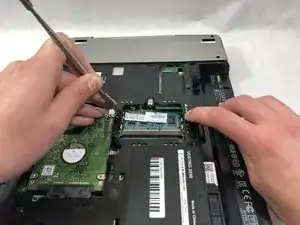

  7. vN4L5BiWUpNKBaqn
    vN4L5BiWUpNKBaqn

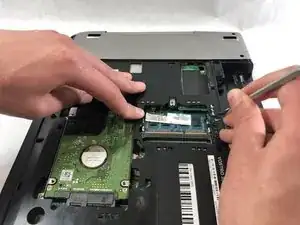

    2QpgLWvmIvjgTAdM

    • Push outward on the two release tabs securing either side of the second RAM module.

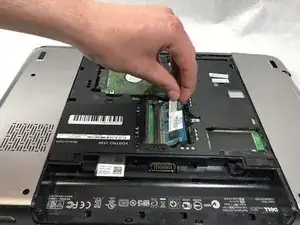

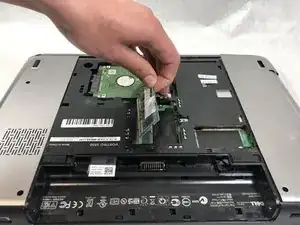

  8. RpaZnF1OdxWsu4Ab
    RpaZnF1OdxWsu4Ab

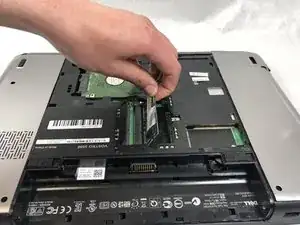

    TKUCk6nQTrM2ahOk
    L1d5Rb2nA4kYg1XS

    • Lift the stick of RAM upward away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
