Dell Vostro 3555 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3555 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. MLnJwSXe3aBmvBtR

    • Slide the release latches to unlock the battery.

  2. 1KLRJYtBkHnX4OfN

    • Slide the battery and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. VdcewZ2QoWXqWEDx

    • Remove the screws that secure the access panel to the base of the computer.

  4. UHT5tHONwf6vLIIM

    • Lift the access panel up at an angle and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. bkqiRdArUiwxv1ne

    • Remove the screws that secure the hard drive to the system.

  6. 6HbDCFBryaQSuO6O

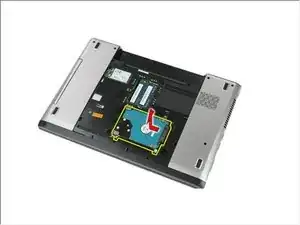

    • Lift up the hard drive at an angle from the system and remove.

  7. OAXCCnB6snnD2YwV

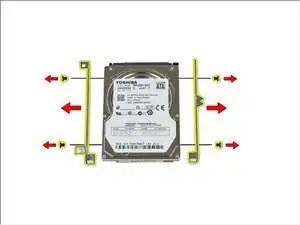

    • Remove the screws that secure the hard-drive bracket to the hard drive.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
