Dell Vostro 3555 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3555 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 15 Minuten

Einleitung

  1. MLnJwSXe3aBmvBtR

    • Slide the release latches to unlock the battery.

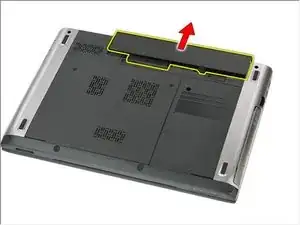

  2. 1KLRJYtBkHnX4OfN

    • Slide the battery and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. VdcewZ2QoWXqWEDx

    • Remove the screws that secure the access panel to the base of the computer.

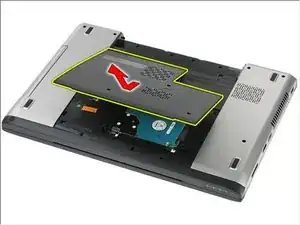

  4. UHT5tHONwf6vLIIM

    • Lift the access panel up at an angle and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. cVnuuIbsVkoChUUJ

    • Pry the retention clips away from the memory module until it pops up.

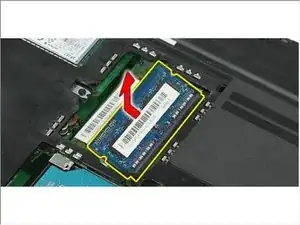

  6. 6FYZFHGmWhkFOQkj

    • Remove the memory module from its connector on the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
