Dell Vostro 3558 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 3558 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. FLCxly4It52DJhBD

    • Slide the release latch outwards to unlock the battery.

  2. LkYiLxgUo2LiIcTb

    • Remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. LfB1VMh1ifiUaKAM

    • Remove the screws that secure the access panel to the computer [1].

    • Lift the access panel partially at a 45–degree angle [2].

  4. AMZZMvOXUDmsSHEe

    • Remove the access panel from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. gZxFLGpnUG3bk2lM

    • Disconnect the hard drive cable from the system board and lift it up to remove it from the computer.

    • Remove the screws that secure the hard drive to the computer.

  6. hHacPlHJsacdRX1f

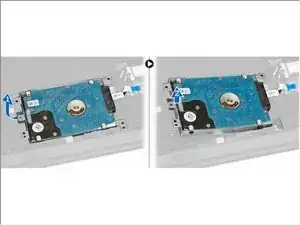

    • Lift the hard drive to remove it from the computer.

  7. iNURuo6UDRDAJTLY

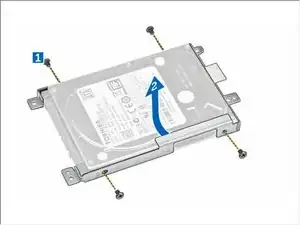

    • Remove the screws that secure the hard drive to the bracket.

    • Lift the hard drive from the bracket.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
