Dell Vostro 3558 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 - 15 Minuten

Einleitung

  1. FLCxly4It52DJhBD

    • Slide the release latch outwards to unlock the battery.

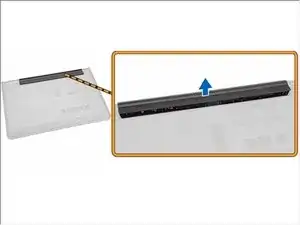

  2. LkYiLxgUo2LiIcTb

    • Remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. LfB1VMh1ifiUaKAM

    • Remove the screws that secure the access panel to the computer [1].

    • Lift the access panel partially at a 45–degree angle [2].

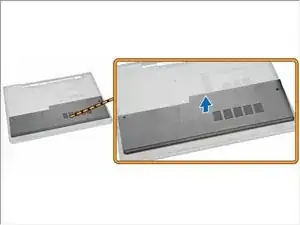

  4. AMZZMvOXUDmsSHEe

    • Remove the access panel from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. YgSS4IeQWhqX6KZW

    • Pry the securing clips away from the memory module until it pops up

    • Remove the memory module from its socket on the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
