Dell Vostro 3560 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

In this guide you will replace the hard drive in your Vostro 3560 Laptop. Some of this guide was made with information from this video.

  1. ljW4IyxO5EkL5QpT
    ljW4IyxO5EkL5QpT
    BL26LyRyaXZMuGwg

    • Make sure you have the right laptop by checking the sticker.

  2. xdxNTFxYwMEgGwIA
    xdxNTFxYwMEgGwIA
    U3aBlIYhyBy2KNxj

    • Start with your PC shut off and upside down.

    • Pull out tabs.

    • Pull up on rail to remove battery.

  3. cL1TwWqMRXy3pQdg

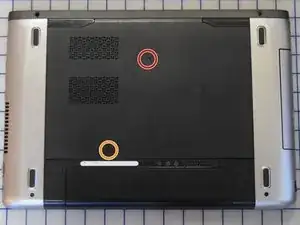

    • Remove the two screws:

    • One M2 Phillips screw (Fixed)

    • One 5-mm M2 Phillips screw

  4. 1patoIBc5tCNQqmf
    1patoIBc5tCNQqmf
    t1wGu1EHZBLogwTR
    To1VXMPiW5pDb1vO

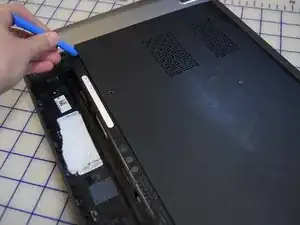

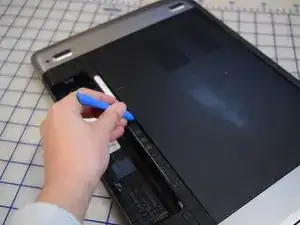

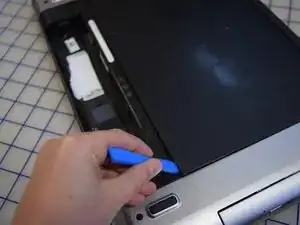

    • Use a iFixit opening tool to remove the back panel.

  5. lnfQxFnvG3BEIuGZ

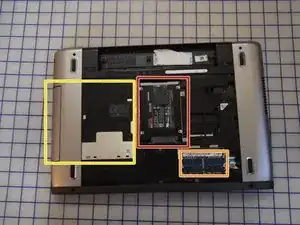

    • From here you can access:

    • The hard drive

    • The RAM.

    • The CD Drive.

  6. saUlRAABAUGQQ2Ln

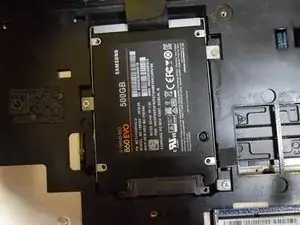

    • We will work on the hard drive.

  7. HpL6jWcLnUUxEcOH
    HpL6jWcLnUUxEcOH
    qDykxSWXfcOGCEQL
    54LMUYE5XWDXrVqR

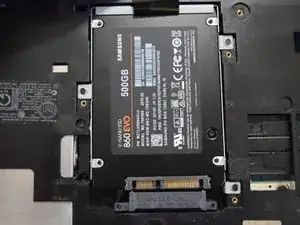

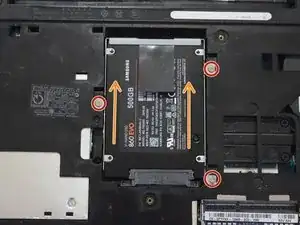

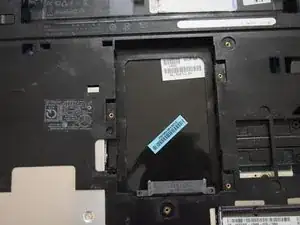

    • Remove the three 2.8-mm M2 Phillips screws.

    • Once you have removed the screws, gently pull the tab up to disconnect the hard drive.

    • Remove the hard drive assembly from the frame by pulling it straight up.

  8. gbejDJJkpOWGySHW
    gbejDJJkpOWGySHW
    movCiLx1VDM4nFVc
    OOCvP1RgGi3DERXR

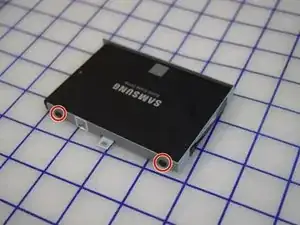

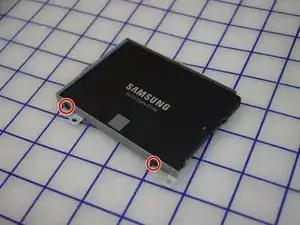

    • After removing the hard drive assembly from the frame, remove the four 3-mm M3 Phillips screws.

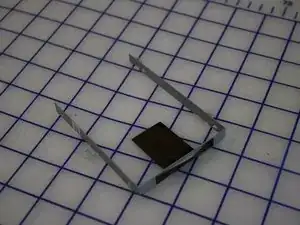

    • Once the screws are removed, remove the hard drive from the hard drive frame.

    • When re-mounting the hard drive into the hard drive frame, be sure to install the hard drive so that the underside of the hard drive is on the side of the frame with the tab. Also, make sure to put the Sata ports on the side opposite the tab so that they are not covered.

Abschluss

To reassemble your device, follow these instructions in reverse order.
