Dell Vostro 3750 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3750 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 - 15 Minuten

Einleitung

  1. iySR4bCBte2hJhK1

    • Slide the release latches to unlock the battery.

  2. A2gJdxIKqXrNxPHV

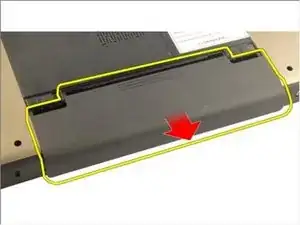

    • Slide the battery out of the chassis and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. 1dLJSqUOQGF3Unh3

    • Loosen the screws that secure the memory door.

  4. yBTKXRlUiBqKEkdW

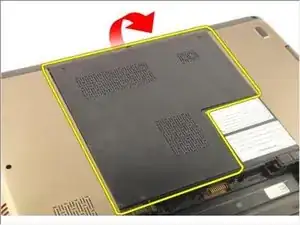

    • Pry up the memory door near the screw hole, lift, and remove it

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. yCsObYUujRrxBxSN

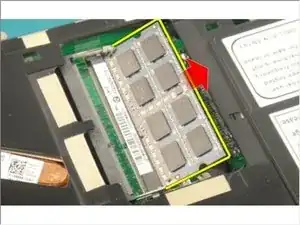

    • Pry the retention clips away from the memory module until it pops up.

  6. HTXq3yjYeNkQuUJO

    • Remove the memory module from its connector on the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
