Dell Vostro 500 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 500 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide, will be showing you how to remove and replace the Memory Module.

  1. xaCHw4wJXm5IIrmX

    • Slide the battery release latch toward the side of the computer until it is engaged.

    • Slide the battery out of the bay.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  2. T5NrWPTanFqooDAd

    • Turn the computer upside-down, loosen the eight captive screws on the cover and remove the cover.

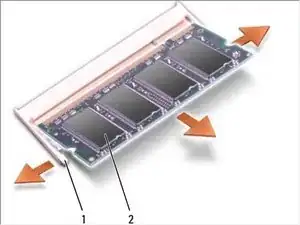

  3. 6ALRftVcaLxdhPOG

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

    • Remove the module from the connector.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
