Dell Vostro 5470 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 5470 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. cTroisAZnuCeWoUJ

    • Remove the screws that secure the base cover to the computer.

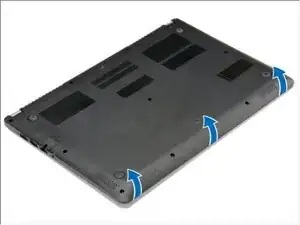

  2. hMclTptMlIEg54Er

    • Pry the base cover along the edges to loosen it.

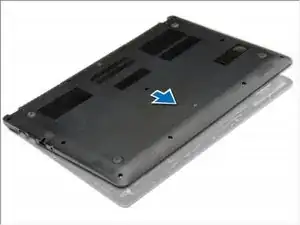

  3. uYSbQrN5WUXTLaf2

    • Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. RLFZFvTNwHTaHwEF

    • Disconnect the battery cable from its connector on the system board.

  5. 1cfDJ1daagF2qoHg

    • Release the tabs that secure the battery in the battery bay.

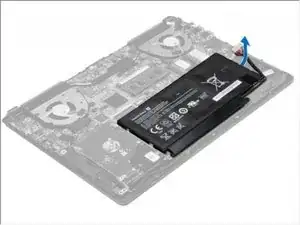

  6. mxSfNXev5WVJffrq

    • Lift and remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  7. uyuhIaOHvpmfGLEq

    • Pry the securing clips away from the memory module until it pops up. Remove the memory module from its connector on the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
