Dell Vostro 5480 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 5480 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. RIdRDhHkRkMu6avE

    • Remove the screws that secure the base cover to the computer.

  2. DDt3LVtK6I4ZUx3U

    • Pry the base cover along the edges to loosen it.

  3. PjfRIGbDHPBfBQV2

    • Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. CPeXYWPXpBVyYM4T

    • Disconnect the battery cable from its connector on the system board.

  5. JFZU2nJ1UfLsK6uh

    • Release the tabs that secure the battery in the battery bay.

  6. 1oZxxLMtTd5WlWGb

    • Lift and remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  7. XpMt6rD24meGQxwp

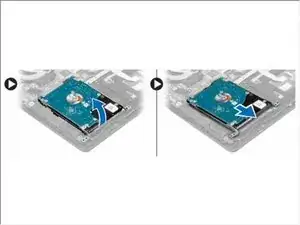

    • Lift the hard drive assembly in an upward direction to release it from its compartment on the computer. Remove the hard drive from the computer.

  8. jMUyUy1YOadnAQvw

    • Remove the screws that secure the hard drive to the hard drive assembly.

    • Lift and remove the hard drive from the hard drive assembly.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
