Dell Vostro 5480 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 5480 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

7 - 15 Minuten

Einleitung

  1. RIdRDhHkRkMu6avE

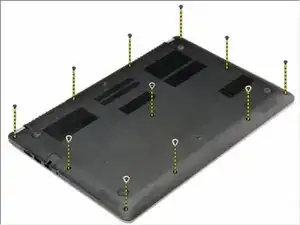

    • Remove the screws that secure the base cover to the computer.

  2. DDt3LVtK6I4ZUx3U

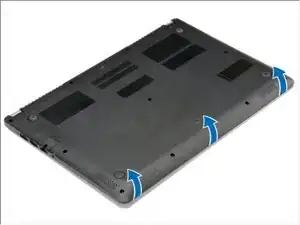

    • Pry the base cover along the edges to loosen it.

  3. PjfRIGbDHPBfBQV2

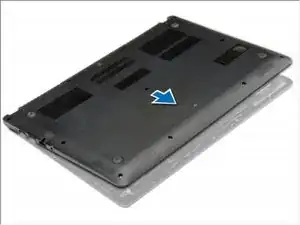

    • Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. CPeXYWPXpBVyYM4T

    • Disconnect the battery cable from its connector on the system board.

  5. JFZU2nJ1UfLsK6uh

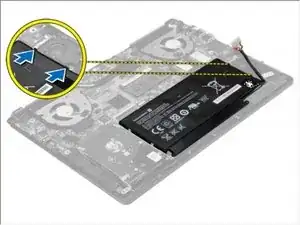

    • Release the tabs that secure the battery in the battery bay.

  6. 1oZxxLMtTd5WlWGb

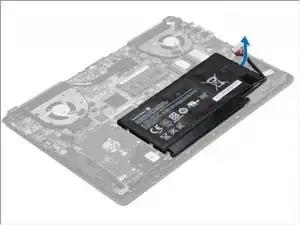

    • Lift and remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  7. 5OxOylPJEgdWC6lx

    • Pry the retention clips away from the memory module until it pops up. Remove the memory module from its connector on the system board.

    Does anybody know the memory specs?

    Jean masaoka -

Abschluss

To reassemble your device, follow these instructions in reverse order.
