Dell Vostro 5560 Base Cover Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 5560 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Base Cover.

  1. ExZCLoyA5WWoZLKP

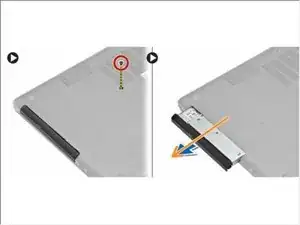

    • Remove the screw that secures the base cover to the computer.

    • Pull the optical-drive and remove from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  2. ax3pVdCJjRW1aECp
    ax3pVdCJjRW1aECp
    Id4A15LSmYZRGOS5

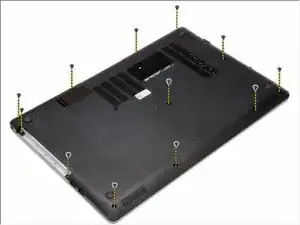

    • Remove the screws that secure the base cover to the computer.

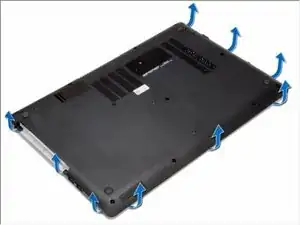

    • Pry the base cover along the edges to loosen it. Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
