Dell Vostro 5560 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 5560 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. ExZCLoyA5WWoZLKP

    • Remove the screw that secures the base cover to the computer.

    • Pull the optical-drive and remove from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  2. ax3pVdCJjRW1aECp
    ax3pVdCJjRW1aECp
    Id4A15LSmYZRGOS5

    • Remove the screws that secure the base cover to the computer.

    • Pry the base cover along the edges to loosen it. Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. uK3gEOmL5fOOOpjl

    • Disconnect the battery cable from its connector on the system board.

    • Lift and remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. SyTvrqjTCWHUVuwD

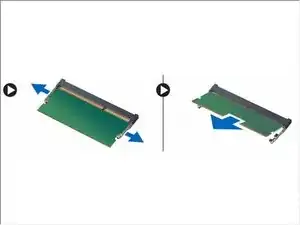

    • Pry the securing clips away from the memory module until it pops-up. Remove the memory module from its connector on the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
