Dell Vostro A860 RAM Memory Sticks Replacement

Geschrieben von: Joshua Dennis
  • Kommentare: 0
Dell Vostro A860 RAM Memory Sticks Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

Depending on the configuration of the laptop you own there may be one or two memory sticks located inside the compartment.

  1. KBoxn4XXH3lnXBjS
    KBoxn4XXH3lnXBjS
    oPNcRdNLhOOBtBB2

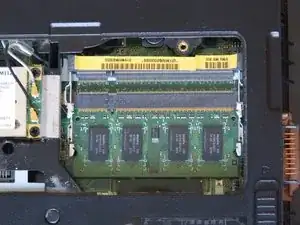

    • With the computer facing down locate the RAM compartment cover.

    • Unscrew the two screws holding the cover to the laptop chassis.

    • The screws do not remove completely, they are clipped into the compartment cover.

    • Lift up on the Memory cover and remove.

  2. TBCnCSuWJHRvhtRj

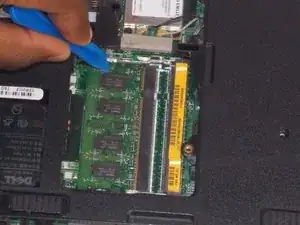

    • Using a plastic opening tool push outward on both sides of the RAM stick.

    • doing this will release the silver tension clips holding the memory sticks in place. Once released the stick will easily lift up and out of the unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
