Dell Vostro A90 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. jIJyFDVOpvtNDUgV

    • Turn the computer over.

    • Slide the battery-bay release latch and the battery-lock latch towards the outer edges.

    • Slide the battery out of the battery bay.

    • Turn the computer top-side up, open the display, and press the power button to ground the system board.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  2. OmV2FGleKp3L6w5I

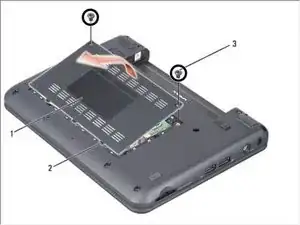

    • Remove the two screws on the module cover.

  3. kuVjXSRJZAlS44gw

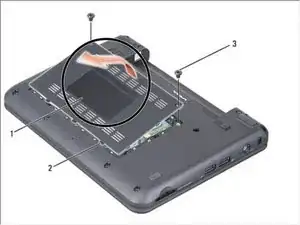

    • Lift the cover off the computer at an angle as shown in the figure.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
