Dell Vostro V13 SIM Card Replacement

Geschrieben von: Amy Ledermann
  • Kommentare: 0
Dell Vostro V13 SIM Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

If your laptop is giving you an error that your SIM card is not detected, and you are unable to resolve the issue, it may be damaged and need replacing. If you follow this guide, it will detail how to replace the SIM card in order to get your laptop working again properly. Before you begin this guide, make sure your laptop is powered off, unplugged, and you have backed up the hard drive in order to prevent injury as well as data loss.

  1. srpZPYZlRAo3p6J2
    srpZPYZlRAo3p6J2
    CC3dnBMlda6M6xEi
    MC5IOHMEMfCEaHJU

    • Back up the memory to an external drive and power off the laptop before starting.

    • Flip the laptop over so the vents are facing you.

    • Remove the six 5.0 mm Phillips #1 screws using the magnetic driver.

    • Remove the two 5.0 mm Phillips #1 screws on the back side of the laptop.

  2. OBwugeXpwrmO4WOr
    OBwugeXpwrmO4WOr
    BHFbyYIAFEHwcaUW
    dRShHAsulbbdcmrg

    • Slide out the SD and MicroSD holders.

    • If you are having trouble sliding them out, use the plastic opening tool.

  3. MubFwfvO1b15xSFk
    MubFwfvO1b15xSFk
    qehACBFkdcVHER5L
    wmktbnnKWdMqdBax

    • Slide the plastic opening tool around the perimeter of the laptop until the cover pops off.

    • Pull the back cover off.

  4. TmWXmW3RcFaIGDJ2
    TmWXmW3RcFaIGDJ2
    1ZVZkvnXpASCmNq5

    • Remove the three black 3.9 mm Phillips #1 screws holding the battery in place.

  5. Dsoup6R2alr3GFTd
    Dsoup6R2alr3GFTd
    IPIaEQnQIBBd1fVS
    6ZZPRGoCuUUrgXOi

    • Flip up the clip of the ribbon connector.

    • Pull the strip out to disconnect the battery.

  6. shckkUBNyBGmTlpl
    shckkUBNyBGmTlpl
    RX2iOYgFLUjfELTM

    • Remove the battery.

    • Removing the battery allows you to work safely.

  7. ThsOPryNIrXlYvHQ
    ThsOPryNIrXlYvHQ
    tEBnYZlBHLALNj6V
    NiHjbuwU2VpGOOig

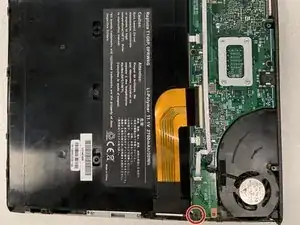

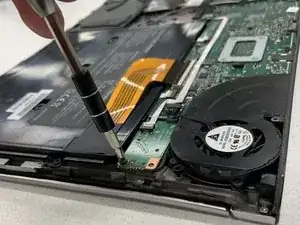

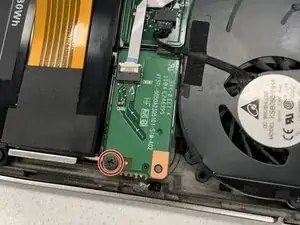

    • Remove the black 3.1 mm Phillips #1 screw.

  8. AsIweB65itk5sfpb
    AsIweB65itk5sfpb
    tMMJwSIajUBIaPNk
    hYNuZQRFs6g1RrLu

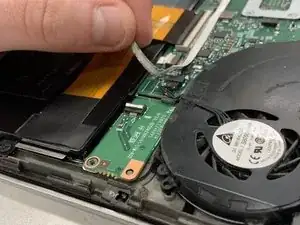

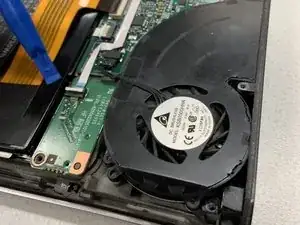

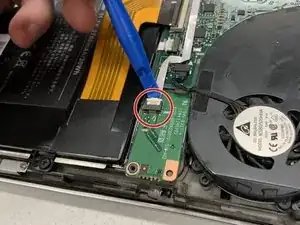

    • Use the plastic opening tool to disconnect the ribbon connector.

  9. LfJ5WjFmCtD6PhF6
    LfJ5WjFmCtD6PhF6
    Owl4jluSPF3m4uTe

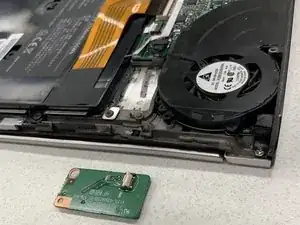

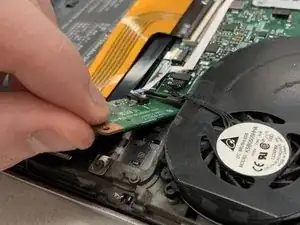

    • Remove the SIM card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
