Dell Vostro V13 Sound Card Replacement

Geschrieben von: Patrick Swaney
  • Kommentare: 0
Dell Vostro V13 Sound Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

9 - 15 Minuten

Einleitung

You can follow these steps to replace the sound card in your Dell Vostro V13. Be sure to power down, unplug and also back-up your laptop in order to prevent injury and loss of data.

  1. srpZPYZlRAo3p6J2
    srpZPYZlRAo3p6J2
    CC3dnBMlda6M6xEi
    MC5IOHMEMfCEaHJU

    • Back up the memory to an external drive and power off the laptop before starting.

    • Flip the laptop over so the vents are facing you.

    • Remove the six 5.0 mm Phillips #1 screws using the magnetic driver.

    • Remove the two 5.0 mm Phillips #1 screws on the back side of the laptop.

  2. OBwugeXpwrmO4WOr
    OBwugeXpwrmO4WOr
    BHFbyYIAFEHwcaUW
    dRShHAsulbbdcmrg

    • Slide out the SD and MicroSD holders.

    • If you are having trouble sliding them out, use the plastic opening tool.

  3. MubFwfvO1b15xSFk
    MubFwfvO1b15xSFk
    qehACBFkdcVHER5L
    wmktbnnKWdMqdBax

    • Slide the plastic opening tool around the perimeter of the laptop until the cover pops off.

    • Pull the back cover off.

  4. TmWXmW3RcFaIGDJ2
    TmWXmW3RcFaIGDJ2
    1ZVZkvnXpASCmNq5

    • Remove the three black 3.9 mm Phillips #1 screws holding the battery in place.

  5. Dsoup6R2alr3GFTd
    Dsoup6R2alr3GFTd
    IPIaEQnQIBBd1fVS
    6ZZPRGoCuUUrgXOi

    • Flip up the clip of the ribbon connector.

    • Pull the strip out to disconnect the battery.

  6. shckkUBNyBGmTlpl
    shckkUBNyBGmTlpl
    RX2iOYgFLUjfELTM

    • Remove the battery.

    • Removing the battery allows you to work safely.

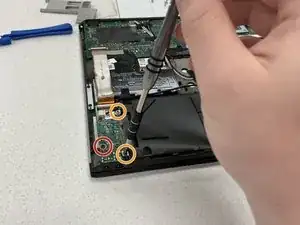

  7. 5MtVpuusYYVok6JI
    5MtVpuusYYVok6JI
    BX1xtxgFJXg3n16m

    • Remove the black 3.0 mm Phillips #1 screw.

    • Remove the two 5.1 mm silver Phillips #1 screws.

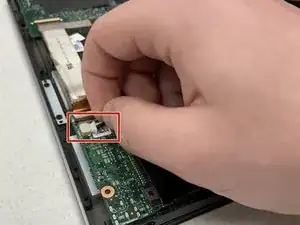

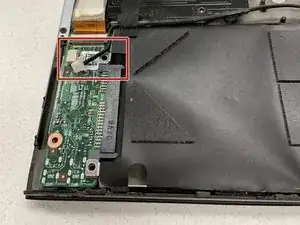

  8. ZbOAmN4PDxhKP4EP
    ZbOAmN4PDxhKP4EP
    LaFL445wURb1QFAV

    • Disconnect the white plug on the top left corner of the sound card.

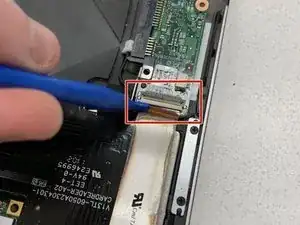

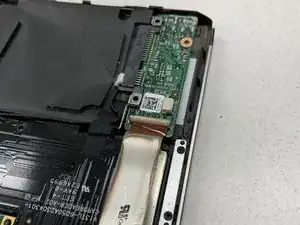

  9. aKoiY4uVKtWMGmtL
    aKoiY4uVKtWMGmtL
    ZTejhOZ4QEoN3KEn

    • Use the plastic opening tool to flip the ribbon connector up.

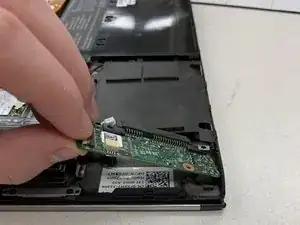

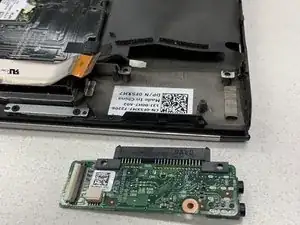

  10. TLMKqTy2USdVjI1P
    TLMKqTy2USdVjI1P
    peX3NAcq15J41tfc

    • Pull the sound card out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
