Dell Vostro V130 Hard Drive and Audio Board Removal

Remove the screws that secure the base cover to the computer.

Slide the base cover towards the front of the computer. Lift it up and away from the computer.

If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Lift the black cable-release clip to release the battery cable from the connector on the system board and disconnect the battery cable.

Remove the screws that secure the battery to the computer.

Lift the battery up and away from the computer.

Disconnect the speaker and system board cables from the audio board.

Remove the screws that secure the audio board and the hard drive to the computer.

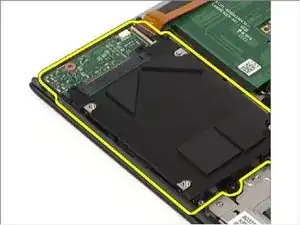

Lift and remove the hard drive and audio board assembly from the computer.

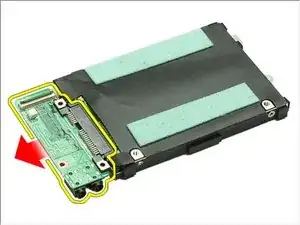

Slide the audio board from the hard drive.

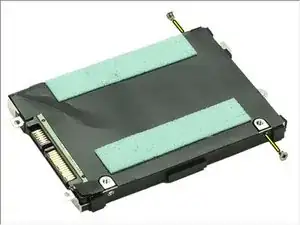

Remove the screws that secure the hard-drive bracket to the hard drive.

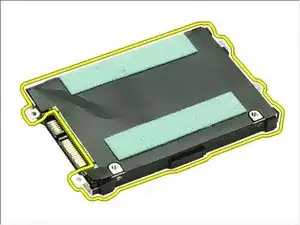

Remove the hard drive from the hard-drive bracket.
