Dell XPS 12 9Q33 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. cFXUCO4N2IcXJqXt

    • Be sure to power off and unplug your device before you begin your repair.

    • Use your fingers or a spudger to pry up the system badge from the bottom of the laptop.

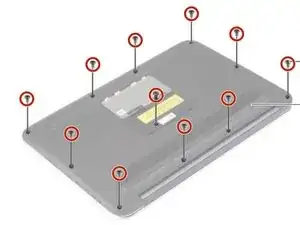

  2. drBwygc2CnKuUBuF

    • Use a Phillips screwdriver to remove the eleven screws securing the base cover.

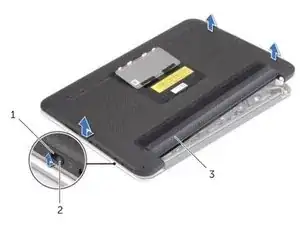

  3. FVoBEAtJaCi5s3Ex

    • Beginning with the side opposite the power switch, use your fingers to pry up the base cover from the laptop.

    • Carefully lift the base cover around the power switch and remove the cover.

  4. ShvkpSu1Z62nAhWx

    • Slide the battery cable connector out of its system board socket.

    • Pull parallel to the motherboard, not straight up, or you will damage the socket.

    • Remove the screws that secure the battery to the palm-rest assembly.

    • Lift and remove the battery along with its cable.

    • Slide and hold the power switch for about five seconds to ground the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
