Dell XPS 13 9300 Battery Replacement

Geschrieben von: Clay Eickemeyer
  • Kommentare: 3
Dell XPS 13 9300 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide shows how to remove and replace the battery for the Dell XPS 13 9300 laptop.

For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. OxLDeiFsjBFbBKoH
    OxLDeiFsjBFbBKoH
    jdwmycAJutB4T63W

    • Use a T5 Torx screwdriver to remove the eight 3.3 mm screws securing the case.

  2. 2mxcXRONVqj1obFw
    2mxcXRONVqj1obFw
    OtfbFOXTWjlkayvf

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. DhyS4TSRF2n6fqCM
    DhyS4TSRF2n6fqCM
    T1oY25jIUOnMemGq

    • Slide the pick along the front edge to release the clips securing the lower case.

  4. jpLhHKjul5FnFWN3
    jpLhHKjul5FnFWN3
    rf6CFtmALfjIL5JQ
    HPLXSdfps6Olodks

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

  5. UHNMXy31aWKlafXY
    UHNMXy31aWKlafXY
    IwU1YLUKe3KNBUDq
    cWDNn1XlE3Bts1Xd

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  6. A2l3QaUT3CHB3XoF
    A2l3QaUT3CHB3XoF
    wNHFiQ5eNLm2uDHo
    yHReyLN2J6PUFNGh

    • Grip the pull tab on the battery connector with your fingers and gently pull away from the socket to disconnect it.

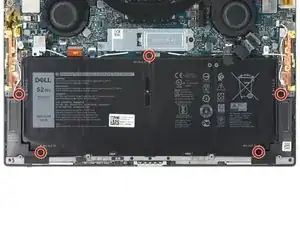

  7. eKFlTAcbPiqgcMX3

    • Use your Phillips screwdriver to remove the five 2.8 mm-long screws securing the battery.

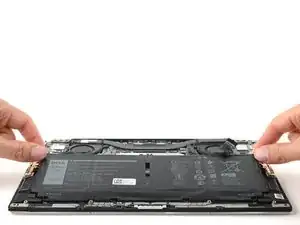

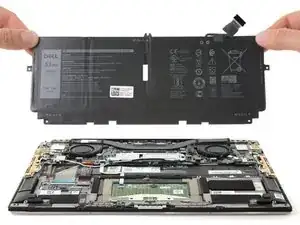

  8. DYdJ3qBHaqxlTOn1
    DYdJ3qBHaqxlTOn1
    ZL4Z14PsNVJSIEY3

    • Remove the battery from its recess.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn't go as planned? Try some basic troubleshooting, or ask our Dell XPS 13 9300 answers community for help.

Tinte & Feder

Clay Eickemeyer

Mitglied seit: 19/09/22

23444 Reputation

3 Kommentare

ok - completed.

The only unexpected thing was upon restart. It did not boot up normally. Instead it gave a bios type warning message:

- Time of day not set - please run SETUP program

- Invalid configuration information - Please run SETUP program

So - I ran bios setup and managed to get to the place to change the time, applied the change, then it booted normally (typing from there now).

Not at all difficult, finishing in perhaps 15 minutes including the bios deal...

Tom -

Same thing happened to me and fortunately Dell makes it really easy to get to the clock. Didn't have any issues.

Matt Anthony -

After replacing the battery, my XPS 9300 Ubuntu cannot find either HD or SSD. If you experience the same issue, it is because the default BIOS setting for RAID may be wrong. After losing power, it goes back to a wrong setting. So make sure you choose the right RAID setting after battery change.

Ziming Zhao -
