Dell XPS 13 9300 Lower Case Replacement

Geschrieben von: Spencer Day
  • Kommentare: 0
Dell XPS 13 9300 Lower Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the lower case on your Dell XPS 13 9300.

Before you perform this repair, be sure to completely power off and unplug your laptop. Make sure the laptop is not in standby, sleep, or hibernation mode.

  1. OxLDeiFsjBFbBKoH
    OxLDeiFsjBFbBKoH
    jdwmycAJutB4T63W

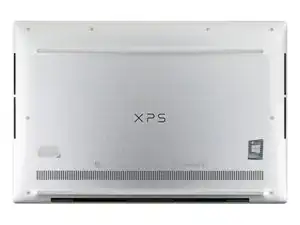

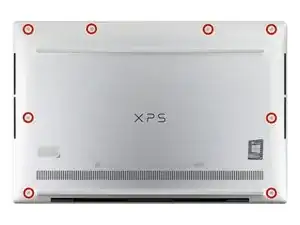

    • Use a T5 Torx screwdriver to remove the eight 3.3 mm screws securing the case.

  2. 2mxcXRONVqj1obFw
    2mxcXRONVqj1obFw
    OtfbFOXTWjlkayvf

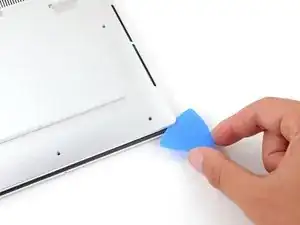

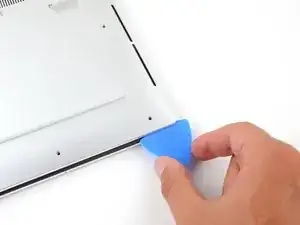

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. DhyS4TSRF2n6fqCM
    DhyS4TSRF2n6fqCM
    T1oY25jIUOnMemGq

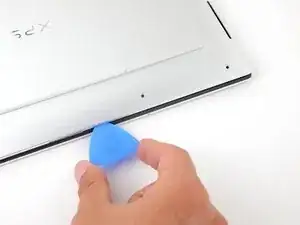

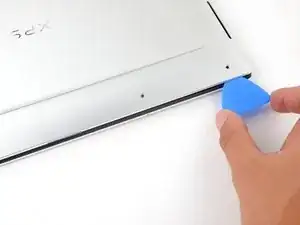

    • Slide the pick along the front edge to release the clips securing the lower case.

  4. jpLhHKjul5FnFWN3
    jpLhHKjul5FnFWN3
    rf6CFtmALfjIL5JQ
    HPLXSdfps6Olodks

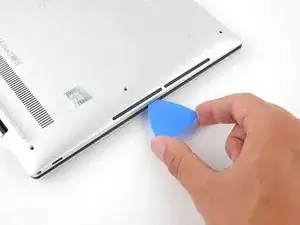

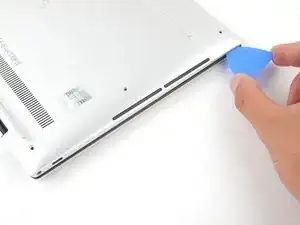

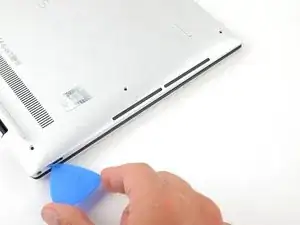

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

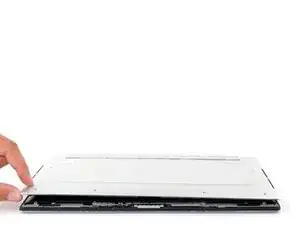

  5. UHNMXy31aWKlafXY
    UHNMXy31aWKlafXY
    IwU1YLUKe3KNBUDq
    cWDNn1XlE3Bts1Xd

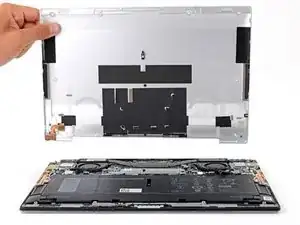

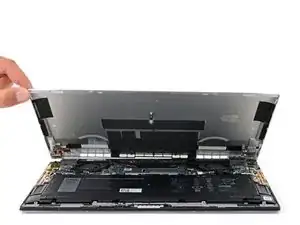

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-stewards certified recycler.

Repair didn't go as planned? Try some basic troubleshooting, or ask our Dell XPS answers community for help.
