Dell XPS 13 9305 SSD Replacement

Geschrieben von: Clay Eickemeyer
  • Kommentare: 0
Dell XPS 13 9305 SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will demonstrate how to remove and replace the Solid State Drive (SSD) in your Dell XPS 13 9305. Use this guide if you're upgrading your SSD, replacing an existing SSD, or transferring an SSD from another computer.

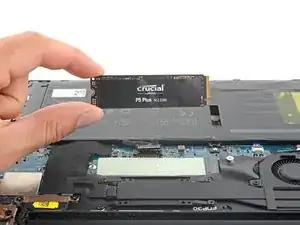

Note that the SSD shield is only required for 30 mm-long (M.2 2230) SSDs. If you install an 80 mm-long full size (M.2 2280) SSD, do not install the shield. This will be described again in the relevant step below.

Before you perform this repair, back up your existing SSD if possible. If you’re replacing the SSD where your operating system is installed, familiarize yourself with a disk cloning utility so you’ll be ready to migrate your data to the new SSD.

  1. TpIA2FFg24uBChBn
    TpIA2FFg24uBChBn
    a1R1dETf4GDWHuua

    • For your safety, discharge the battery below 25% and power down your device before disassembly.

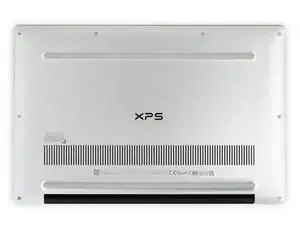

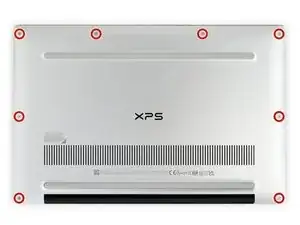

    • Use a Torx T5 screwdriver to remove the eight 3.2 mm-long screws.

  2. PUQ6NCHjVWcFWYLC
    PUQ6NCHjVWcFWYLC
    5Q3yfSPhtWHWLiQe

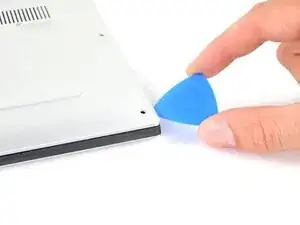

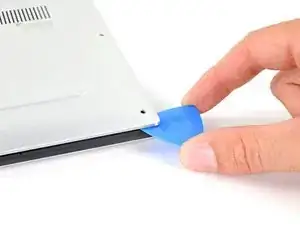

    • At each corner, insert an opening pick between the back cover and the device body.

    • Pry upward to release the retaining clips. Listen for a loud click when each clip releases.

  3. rP6Tf2fvQSFLebHf
    rP6Tf2fvQSFLebHf
    IjcasfkFPqndIuuO
    1LWANk6PCDOLJwpi

    • The edges of the cover are very sharp. Use caution when handling this panel.

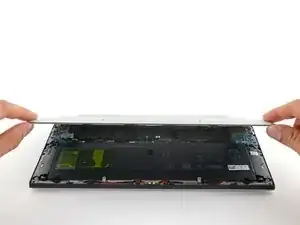

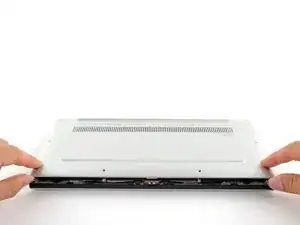

    • Lift the front edge of the cover away from you.

    • Some clips may release during this step. If the cover is stuck, move it side to side to help release additional clips.

    • Remove the back cover from the laptop.

  4. fkkDoQcAxlWTGevo
    fkkDoQcAxlWTGevo
    4YCHmBJt2EfxlXDj
    5wpXjjINOxwDWQpL

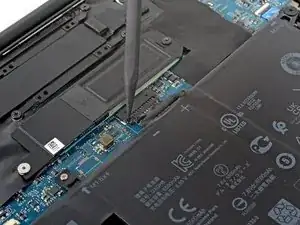

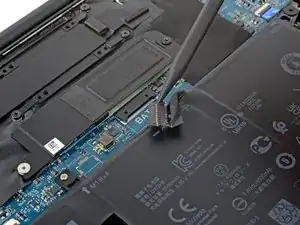

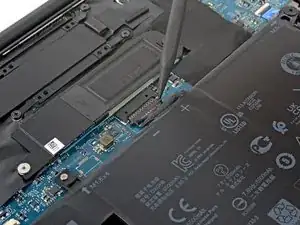

    • Push the battery connector out of its socket using the pointed end of a spudger.

    • Push the small tabs on the side of the connector to avoid damaging the cables.

  5. acwOUEN2Vk6dKEOg
    acwOUEN2Vk6dKEOg
    QFQWeeWLMPIMjuUc

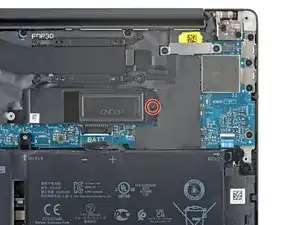

    • Use a Phillips #1 screwdriver to remove the 3.7 mm-long screw from the SSD cover.

    • This cover won't be used if an 80 mm-long full-size SSD is installed.

  6. bJXY5FwWNibDRtUh
    bJXY5FwWNibDRtUh
    HwMZQi3gpdJZ3x4F
    VOBpuuCCBW1B5Sb4

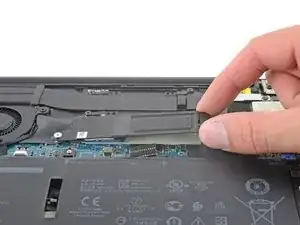

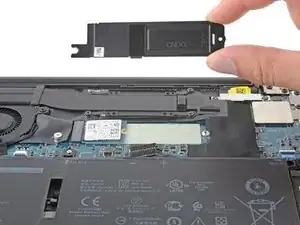

    • Pull the cover off and away from the silver retaining peg.

    • During reassembly, don't install this cover if you're upgrading to a full-size SSD. The cover is needed only for 30 mm-long (M.2 2230) SSDs.

  7. HUjvEBnkBOPwyMYp
    HUjvEBnkBOPwyMYp
    6SIHZWmmMDinYZwQ
    YDNTIoiPYG2paSdV

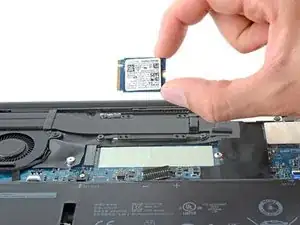

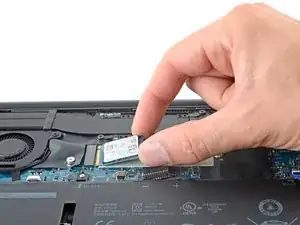

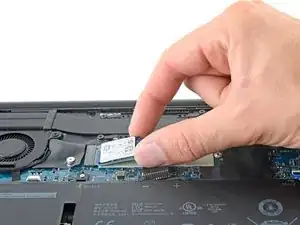

    • Grab the SSD by the corners. Be gentle to not pull up on the SSD.

    • Pull it straight out from the socket. If it feels stuck, wiggle it side to side.

  8. OEEuy1eDCfZVZlVT

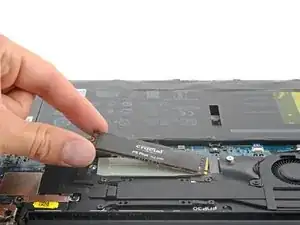

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Dell XPS answers community for help.
