Dell XPS 13 9360 Battery Replacement

Geschrieben von: Max Kletskov
  • Kommentare: 7
Dell XPS 13 9360 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 40 Minuten

Einleitung

How to replace the battery of a Dell XPS 13 9360 laptop. The images and information in this guide were taken from this computer's service manual.

  1. PmAyxVBqXypG5tyT

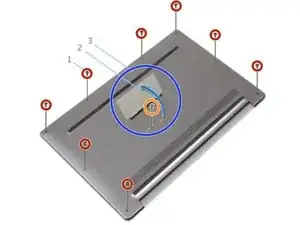

    • Using your fingertips, open the system badge.

    • Remove the screw (M1.6x6) that secures the base cover to the palm-rest assembly.

    • Remove the eight screws (M2x3, Torx) that secure the base cover to the palmrest assembly.

  2. 6IuTtlqeSgtJtfOw

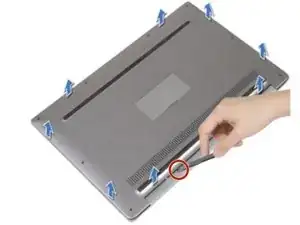

    • Starting from the back of the computer, pry up the base cover using a plastic scribe (spudger).

    • Lift the base cover off the palm-rest assembly.

  3. 1LgycUAY2lKxXmtk

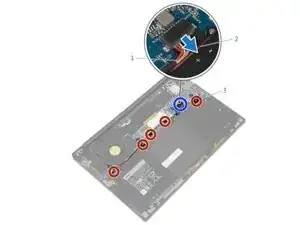

    • Disconnect the battery cable from the system board.

    • Peel off the tape that secures the speaker cable to the battery.

    I didn't have any such tape, took me a few minutes to figure out

    calle -

    There was a little adhesive foam protective pad placed on top of the seam between the battery cable connector and cable receptacle on the computer. Peel off the foam pad in order to separate the connector from receptacle. It detatches simply by sliding it out from the receptacle body. This is easy by curling index finger resting the finger nail on top of the connector, almost like you would scratch an itch. (This was the only part of the repair that was challenging, because not obvious how to do it with the foam pad stuck on the connector.)

    JRK -

  4. yJTMGn2dOLfG1hZv

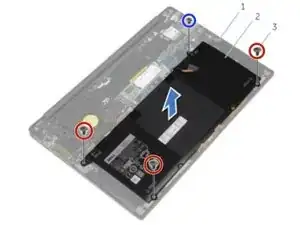

    • Remove the screw (M1.6x4) that secures the battery to the palm-rest assembly.

    • Remove the three screws (M2x2) that secure the battery to the palm-rest assembly.

    • Lift the battery off the palm-rest assembly.

    • Turn the computer over, open the display, and press the power button for about 5 seconds to ground the computer.

Abschluss

To replace the battery & reassemble your device, follow these instructions in reverse order.
