Dell XPS 13 9365 2-in-1 Display Assembly Replacement

Geschrieben von: Melissa Schlein
  • Kommentare: 1
Dell XPS 13 9365 2-in-1 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

25 - 35 Minuten

Einleitung

Use this guide to remove or replace this display assembly (screen) on your Dell XPS 13 9365 2-in-1 laptop. The display assembly on this laptop refers to the entire upper portion of the laptop, which houses the screen display.

  1. rjTfsJEIAivWbRHv

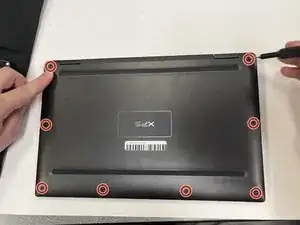

    • Use a Torx T4 screwdriver to remove the eight screws (M2x3) that secure the base cover to the palm-rest assembly.

    Keeps track of the screws is vital. Put screws together put in seperate piles for each level. You want to be able to put the same screw back in the same place, and the screws are small so easy to mess up.

    Alexander Wolf -

  2. kyvwonggwXtYJa6F

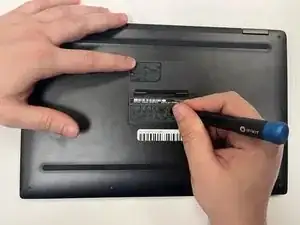

    • Use your fingertips to lift the system badge open and reveal the single case screw.

    • Use a Phillips #000 screwdriver to remove the screw (M1.6x4) that secures the base cover to the palm-rest assembly.

  3. lDD2FbHSgZOWPmiY

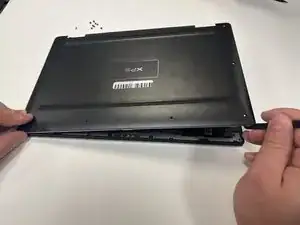

    • Starting from the front corner of the computer, pry up the base cover using a spudger and lift the base cover off the palm-rest assembly.

  4. fTXb2B5H3a3PTZgw

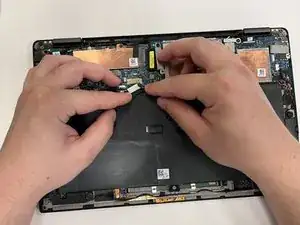

    • Disconnect the battery cable from the system board.

  5. qqq4GFQ4bAKiTfxy

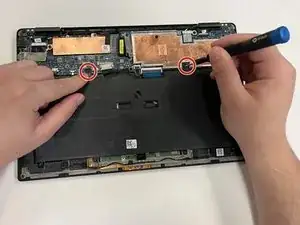

    • Use a Phillips #000 screwdriver to remove the two screws (M1.6x4) that secure the battery to the palm-rest assembly.

  6. eokFoHhAfrGt5ilC

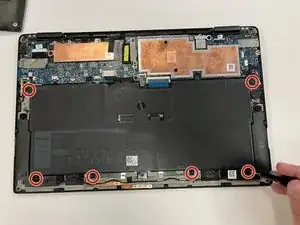

    • Use a Phillips #000 screwdriver to remove the six screws (M2x3) that secure the battery to the palm-rest assembly.

  7. S6lsOqTc4gCZ1Xym

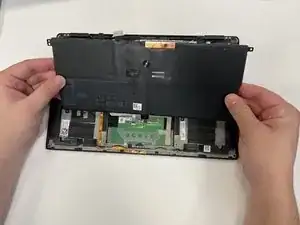

    • Lift the battery off the palm-rest assembly.

  8. 3JalEHH3impx5PqB

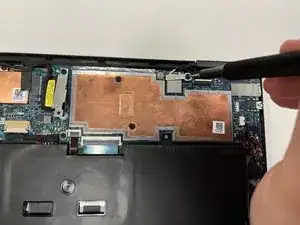

    • Use a Phillips #000 screwdriver to remove the screw (M1.6x2.5) that secures the wireless-card bracket to the motherboard.

  9. D3WgrHaGXNpkMAsY

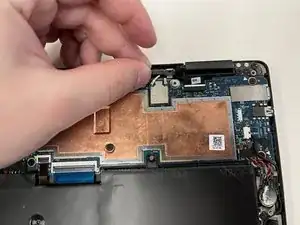

    • Lift the wireless-card bracket off the wireless card.

  10. Evdf3sbGgLoLJYE2

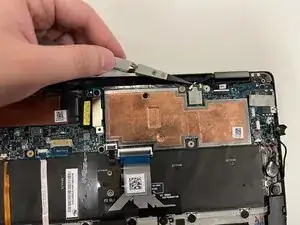

    • Use a pair of nylon tipped tweezers to gently disconnect the antenna cables from the wireless card.

  11. r1NJMuFgexVjX1Ap

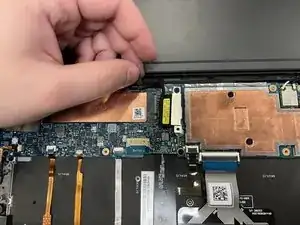

    • Peel off the tape that secures the display cable to the M.2 solid-state drive heatsink.

  12. O3oFBaFHi1MEOApK
    O3oFBaFHi1MEOApK
    Ktj2Z6wuwydZvGW1

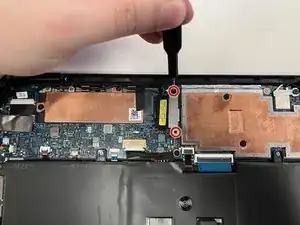

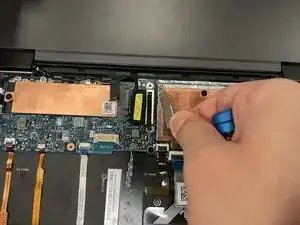

    • Use a Phillips #000 screwdriver to remove the two screws (M1.6x2.5) that secure the display cable bracket to the motherboard.

    • Lift the display cable bracket off the display cable.

  13. V36TnXZlhODo1net

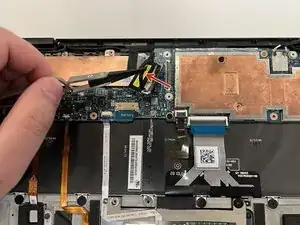

    • Use the pull tab to disconnect the display cable from the motherboard.

  14. RAkCFRHLKyOmgOQQ

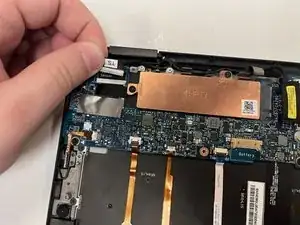

    • Disconnect the touch-screen cable from the system board (labeled "TS").

  15. IPvYVkdcivoU3aF1

    • Disconnect the camera cable from the system board.

  16. 2EnkcfUvucNo3k2I
    2EnkcfUvucNo3k2I
    WrXIcl6kdpw3AGIy
    4KicstljPNinpwDF

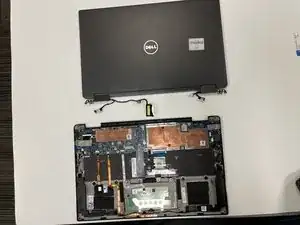

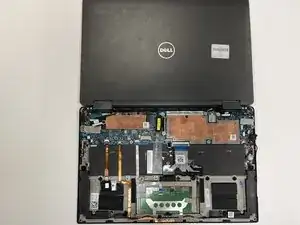

    • Open the palm-rest assembly fully and place the display assembly and palm-rest assembly face down.

    • Make sure that your surface is flat and free of objects when you lay the laptop face down.

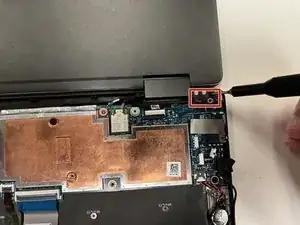

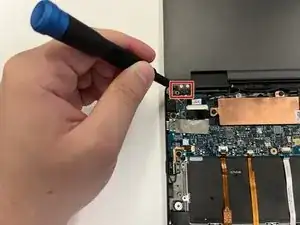

    • Use a Phillips #000 screwdriver to remove the six screws (M2.5x3.5) that secure the display hinges to the palm-rest assembly. There are three on each side.

  17. sVwSBcQiha5WkPtm

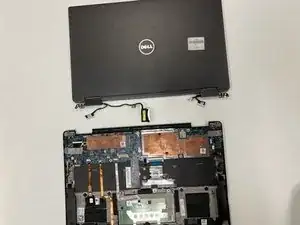

    • Lift the display assembly off the palm-rest assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
