Einleitung
Use this guide to remove or replace your laptop's solid-state drive. The solid-state drive is the laptop's main file-storage device. This guide contains simple steps, but the SSD is fragile so be careful when removing or replacing it.
Werkzeuge
Ersatzteile
-
-
Use a Torx T4 screwdriver to remove the eight screws (M2x3) that secure the base cover to the palm-rest assembly.
-
-
-
Use your fingertips to lift the system badge open and reveal the single case screw.
-
Use a Phillips #000 screwdriver to remove the screw (M1.6x4) that secures the base cover to the palm-rest assembly.
-
-
-
Starting from the front corner of the computer, pry up the base cover using a spudger and lift the base cover off the palm-rest assembly.
-
-
-
Use a Phillips #000 screwdriver to remove the two screws (M1.6x4) that secure the battery to the palm-rest assembly.
-
-
-
Use a Phillips #000 screwdriver to remove the six screws (M2x3) that secure the battery to the palm-rest assembly.
-
-
-

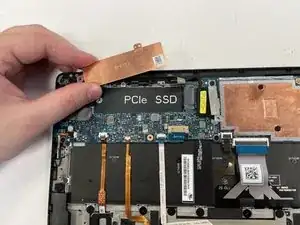

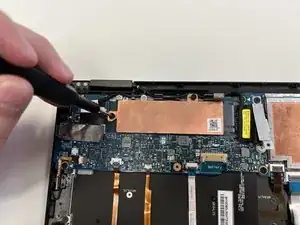

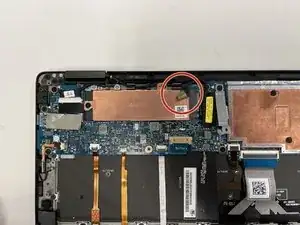

Remove the two screws (M1.6x2.5) that secure the hard-drive plate to the system board with a Phillips 000 screwdriver head.
-
-
-

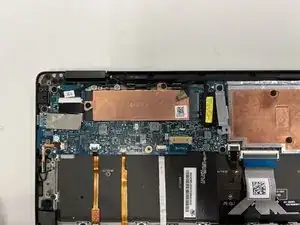

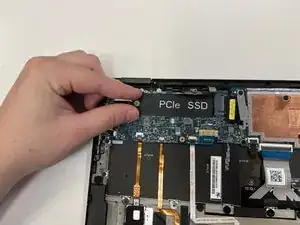

Gently slide and remove the solid-state drive from the solid-state drive slot (SSD not pictured in image).
-
To reassemble your device, follow these instructions in reverse order.
Keeps track of the screws is vital. Put screws together put in seperate piles for each level. You want to be able to put the same screw back in the same place, and the screws are small so easy to mess up.
