How to replace the battery of a Dell XPS 13 9370 laptop. The images and information in this guide were taken from this computer's service manual.
Ersatzteile
-
-
Save and close all open files and exit all open applications.
-
Shut down your computer. Click Start > Power > Shut down.
-
Disconnect your computer and all attached devices from their electrical outlets.
-
Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.
-
Remove any media card and optical disc from your computer, if applicable.
-
-
-

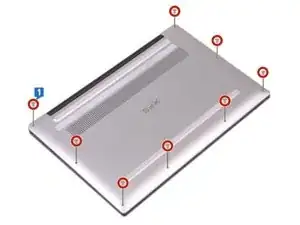

Remove the eight screws (M2x3, Torx) that secure the base cover to the palm-rest assembly.
-
-
-

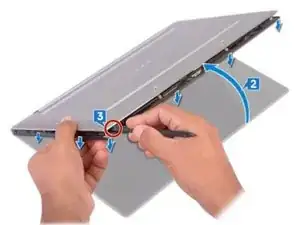

With the computer face-down, open the computer at an angle.
-
Using a plastic scribe (spudger), pry the base cover from the palm-rest assembly.
-

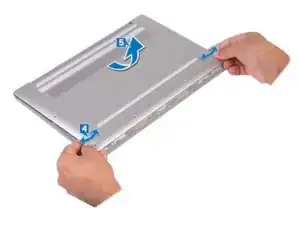

Moving the base cover from left to right, release the clips securing the base cover to the palm-rest assembly.
-
Lift the base cover from the palm-rest assembly.
-
-
-

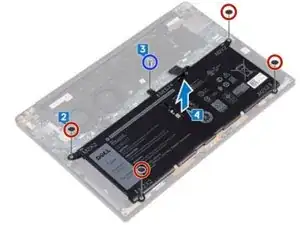

Remove the four screws (M2x2) that secure the battery to the palm-rest assembly.
-
Remove the screw (M1.6x4) that secures the battery to the palm-rest assembly.
-

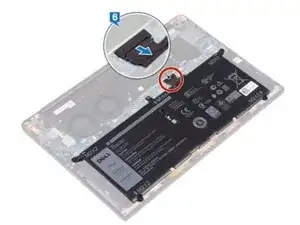

Lift the battery off the palm-rest assembly.
-
Turn the computer over, open the display, and press the power button for about 5 seconds to ground the computer.
-
To replace the battery & reassemble your device, follow these instructions in reverse order.
