Einleitung

Battery not lasting long or completely dead? Replace it (only screwdrivers required).

  1. ClZHpKQpCUMnIRmW
    ClZHpKQpCUMnIRmW
    UBSlYCYOdePuLoaD

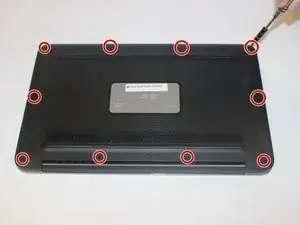

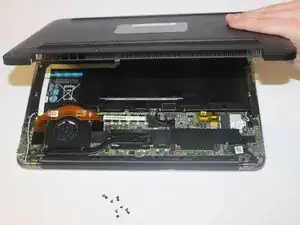

    • Remove ten 3mm screws from the back cover with a T4 screwdriver.

  2. qmNRm5PtLmlZ2A3g
    qmNRm5PtLmlZ2A3g
    phTvjjSUkRcWSVpn

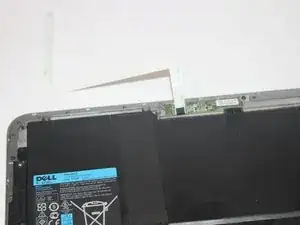

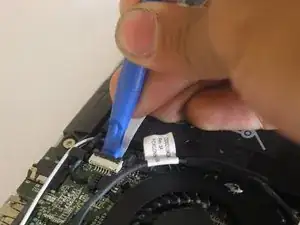

    • Disconnect the ribbon cable with a plastic iFixit opening tool by lifting up the black clip and pulling the white ribbon off.

    • Pull aside the ribbon cable.

  3. OaKchTStTnnHioPF

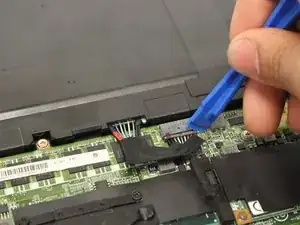

    • Insert a plastic iFixit opening tool in between the port and the wires to remove the battery cable.

  4. weIEZJcIHyyPlY3W
    weIEZJcIHyyPlY3W
    YauBtZr3N1Y1BmTH

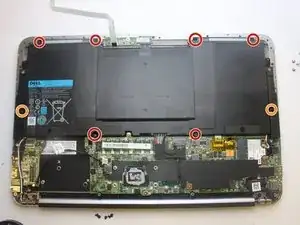

    • Take out 8 silver screws that are holding the battery with a PH00 head screwdriver.

    • Six 3mm screws.

    • Two 5mm screws.

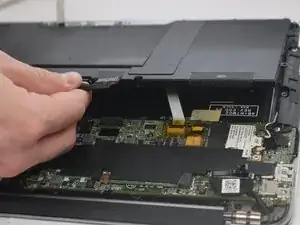

    • Lift the battery out.
