Dell XPS 13 L321X Screen Replacement

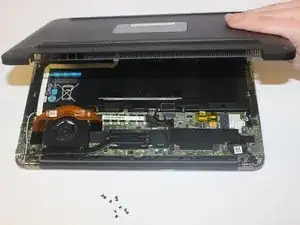

Remove ten 3mm screws from the back cover with a T4 screwdriver.

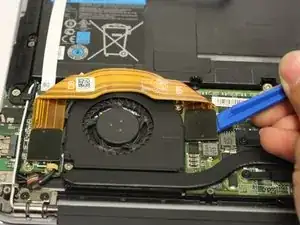

Remove the ribbons from both sides with a plastic iFixit opening tool.

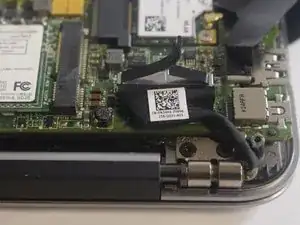

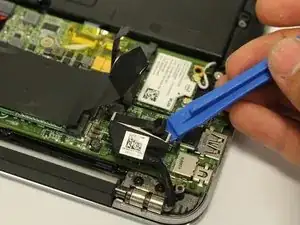

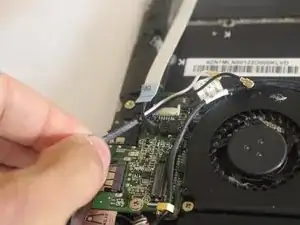

Remove the black wire that connects the screen to the motherboard by pulling up with a plastic iFixit opening tool.

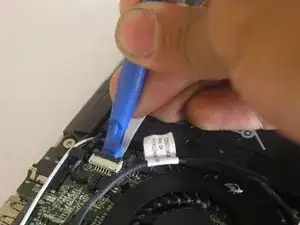

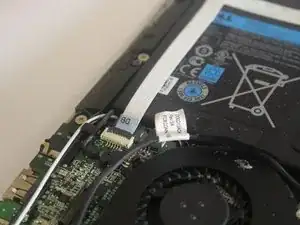

Disconnect the ribbon cable with a plastic iFixit opening tool by lifting up the black clip and pulling the white ribbon off.

Pull aside the ribbon cable.

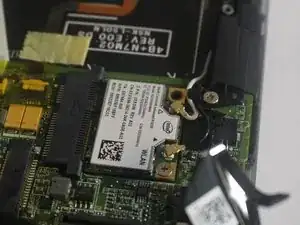

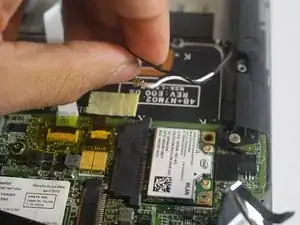

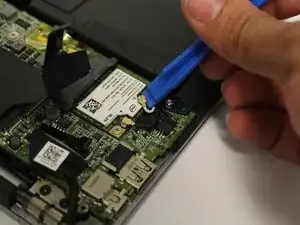

Disconnect the wire that is connected to the wireless card with a plastic iFixit opening tool by lifting up slowly, then pulling the wires aside.

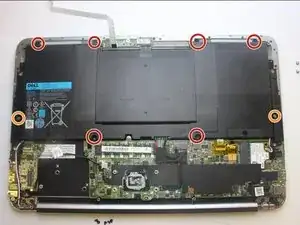

Use a PH00 size screwdriver to remove the 8 screws that secure the battery.

Six 3mm screws.

Two 5mm screws.

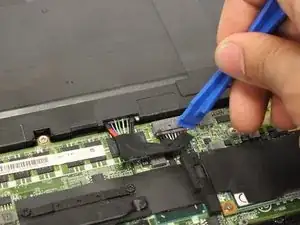

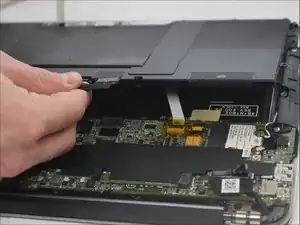

Insert a plastic iFixit opening tool in between the port and the wires to remove the battery cable.

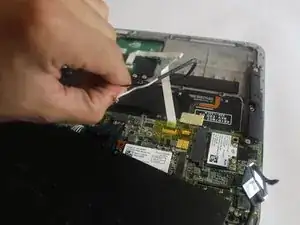

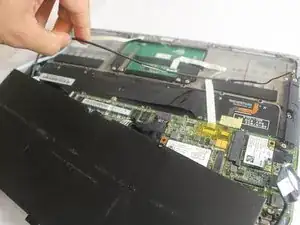

After removing the battery, start to remove the wireless wire and making it through the other wires connected under the battery.

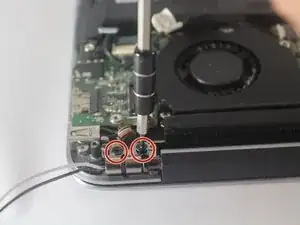

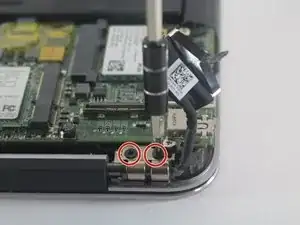

Remove the screws with a PH1 size screwdriver.

Each side of the brackets that are holding the screen down are going to have two 3mm screws in each side.

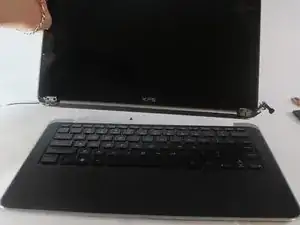

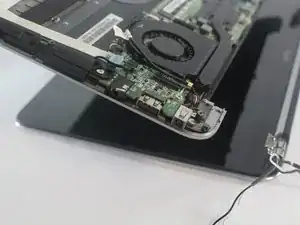

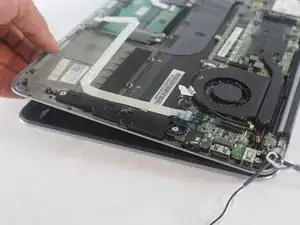

Open the laptop by separating the screen from the actual laptop and take it apart.
