Dell XPS 13 L321X Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

WIFI not working or slow? Replace it (only screwdrivers required).

  1. vErc2TgZShMCBfxD
    vErc2TgZShMCBfxD
    QWDLFTvqtqNZ3fl4

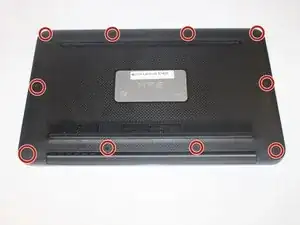

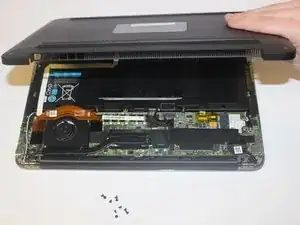

    • Remove ten 3mm screws from the back cover with a T4 screwdriver.

  2. CMwyhcQm3NRt6BAx
    CMwyhcQm3NRt6BAx
    HM2G32Us16Md1xxY

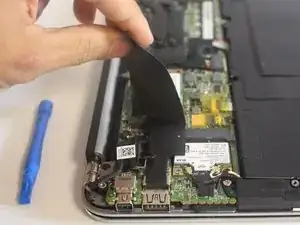

    • Remove the black tape covering the RAM and wireless card with your hands.

  3. MLlV5nonFvqOIJP1
    MLlV5nonFvqOIJP1
    S6tDvb6ilKMMtavB

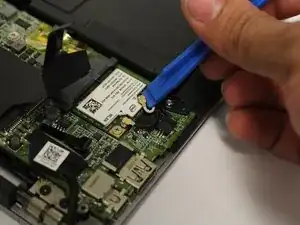

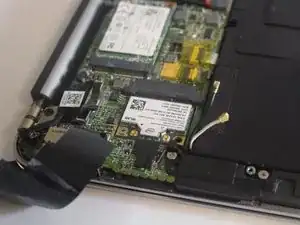

    • Use a plastic iFixit opening tool to remove the two wires connected to the wireless card.

  4. 1UEoAhAmeKRAvwPj
    1UEoAhAmeKRAvwPj
    2JJkLcfcQAp5xEJm

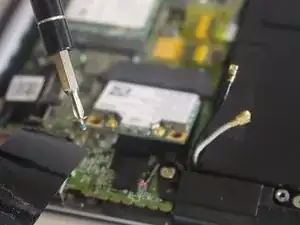

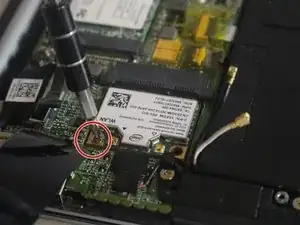

    • Use a PH00 screwdriver to remove the one 3mm screw that holds the wireless card in place.

  5. D2WVFWZvRG3XCeew
    D2WVFWZvRG3XCeew
    rSUySpYWjQLqFbXu
    1EUaLNvRwwvnm21u

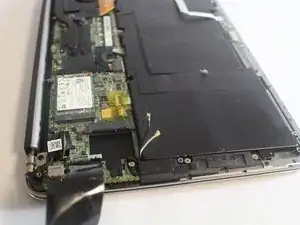

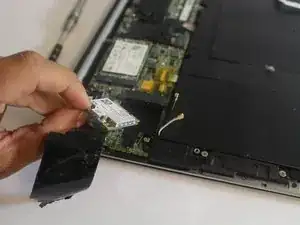

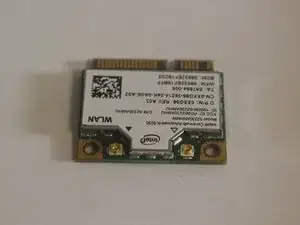

    • Use your hand to remove the wireless card.
