Dell XPS 14 Fan Replacement

Geschrieben von: Gabriella Monico
  • Kommentare: 1
Dell XPS 14 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

The device featured in this replacement guide is the Dell XPS 14 L421X. This guide will assist the user in removing and replacing the laptop's fan. There are no special skills or requirements for this guide, the user will only need to complete the steps shown. The fan may often be the cause for the device overheating. For more troubleshooting information, refer to the troubleshooting page. Before fully removing the fan, make sure you check to ensure that the fan is connected to the device, as these symptoms may also be due to a loose cable or plug. Before following these steps, it is important that you ground yourself by wearing an anti-static wrist strap. Also, make sure that the battery is fully disconnected before removing the fan.

  1. 6gvOkGxGLb4DZMf1

    • Position the computer back side up so that the “XPS” logo is facing you.

    • Remove six 3 mm screws along the perimeter of the back panel using a T5 Torx screwdriver.

  2. pqMaPbwsW6mNRLSV
    pqMaPbwsW6mNRLSV
    unXByc115ysYnHct
    xvFrsniTlp6uxmPR

    • Use an opening tool to pry up the metal plate.

    • Remove the two 6 mm screws under the silver flap using a Phillips #0 screwdriver.

  3. 52eScygypNIQFqBL
    52eScygypNIQFqBL
    UQerEtHL4HbV5PFN

    • Use an opening tool to pop out the back panel.

    • Once unhinged, the panel will open away from you.

    • The back panel will still be attached by a ribbon cable. Be cautious when opening the panel to ensure the ribbon stays intact.

  4. PRCFaaUHPUhAfqeY
    PRCFaaUHPUhAfqeY
    YTf6KCslomWRjXJk
    JUqWB5e5RNDgSXoy

    • Flip over the back panel so that the interior of the panel is facing up.

    • Remove three 2 mm screws that are connected to the vendor GCE disk on the bottom left corner of the back panel using a Phillips #0 screwdriver.

    • Remove the black plastic cover that holds the disk in place.

    • Remove the back panel.

    • The GCE disk should still be connected to the computer via a purple ribbon cable.

  5. VVJ5WRF2XcXCUefZ
    VVJ5WRF2XcXCUefZ
    Oy2RKRSJYqIycJBo

    • Remove four 2 mm screws that are connected to the speaker using a Phillips #0 screwdriver.

  6. uYmkkXCRmbswtYeY
    uYmkkXCRmbswtYeY
    hTOsAU2oJhcB3NnX

    • Remove the speaker from its original location so the wire connector is visible.

    • Unplug the red and white cable plug by pulling out the white end tag.

    • The speaker is now fully removed.

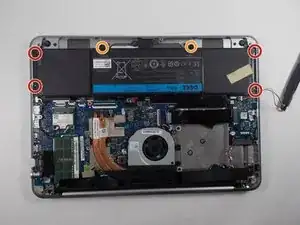

  7. WbqxARE6fgm51PAL

    • Make sure to ground yourself before removing the battery.

    • Remove the four 6 mm screws from the sides of the battery using a T5 Torx screwdriver.

    • Remove the two 3 mm screws from the top of the battery using a Phillips #0 screwdriver.

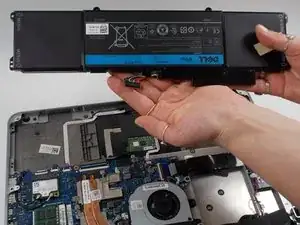

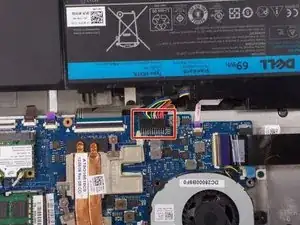

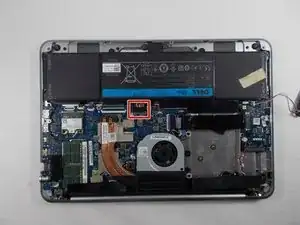

  8. Q3DQ3GFJ3U1ViFeu
    Q3DQ3GFJ3U1ViFeu
    OCHkNLxNOEPVHVNn
    VJfWZQegYdbbRSpc

    • Detach the battery connector from the motherboard using two thumbs to pop it out.

    • Remove the battery from the laptop.

  9. sUfNPOcO5ZYqB2Cp

    • Remove the two 2 mm screws from the fan using a Phillips #0 screwdriver.

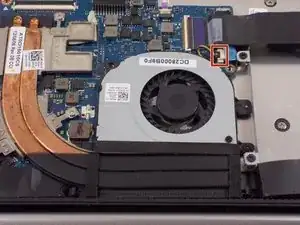

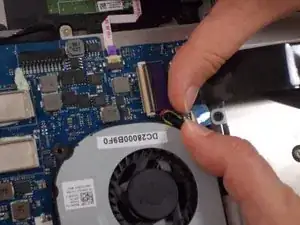

  10. DbmKj2FDDnkvewgE
    DbmKj2FDDnkvewgE
    4QrvItVsOt5yrPSS

    • Use two thumbs to pop out the plug that connects the fan to the laptop.

    • Remove the fan from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
