Dell XPS 14Z L412Z Battery Replacement

Geschrieben von: Colton Niewolny
  • Kommentare: 1
Dell XPS 14Z L412Z Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The battery is the main power supply to the laptop. Keeping a healthy battery is good for your device's health. A worn out battery can cause overheating of the device and it will have a shorter battery life. The removal of the battery is fairly simple and this guide will show you how to remove it. You will need a plastic opening tool and a Phillips #0 screwdriver.

  1. nypP4LHFlB3YnFwp

    • Remove the back cover of the laptop by unscrewing eight 3.5mm screws using a Phillips #0 screwdriver.

  2. lUwhyFVJrbbjOaPu
    lUwhyFVJrbbjOaPu
    RdWTOWwR2QqEovjq

    • Using the plastic opening tool, pry up the back cover.

    • It is recommended to start from a corner and run the tool along the edge of the cover.

  3. 52QtkVAHxtICDHOe

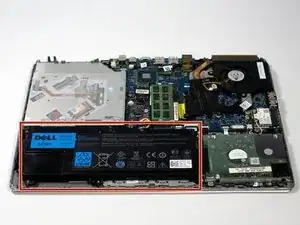

    • The battery is on the bottom left side.

  4. gcFKGbK4YQydSDtW

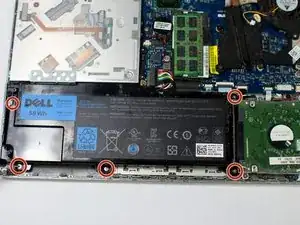

    • Unscrew the five 4.5mm Phillips #0 screws around the battery.

  5. WMy4i4YT3KDloleM
    WMy4i4YT3KDloleM
    H3UUYHpvmmEWfrXA

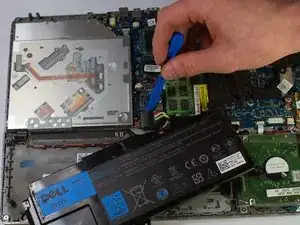

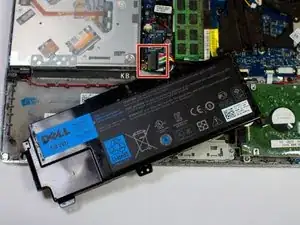

    • Using the plastic opening tools, carefully unplug the battery connection.

    • Then, plug your replacement battery into the new connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
