Einleitung
The hard drive holds the entire memory for the device. Without the hard drive, your device is completely useless. It is fairly easy to replace. When taking off the plastic protection, make sure not to bend the metal parts of the plastic because it will be difficult to put back into place. For this guide you will need a plastic opening tool and a Phillips #0 screwdriver.
Werkzeuge
-
-
Remove the back cover of the laptop by unscrewing eight 3.5mm screws using a Phillips #0 screwdriver.
-
-
-

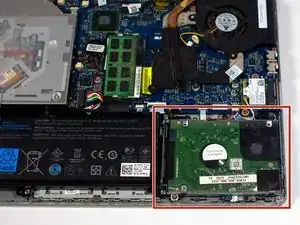

Locate the hard drive on the bottom right corner.
-

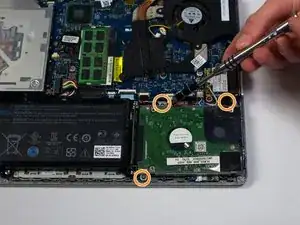

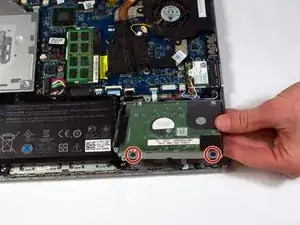

Unscrew the three 3.5mm screws with the Phillips #0 screwdriver.
-

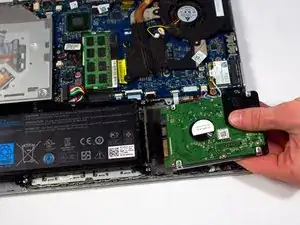

To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
On my laptop there was a small curved metal bracket that sat in the very corner of the PC covering one corner of the hard drive. That had to be removed by loosening a screw and gently prying the bar out before the hard drive could be removed.
