Dell XPS 14Z L412Z LCD Screen Glass Replacement

Geschrieben von: Colton Niewolny
  • Kommentare: 1
Dell XPS 14Z L412Z LCD Screen Glass Replacement

Schwierigkeitsgrad

Very difficult

Schritte

3

Zeitaufwand

30 - 45 Minuten

Einleitung

The glass layer is important to clarity and protection of the LCD screen. However, accidents can cause the screen to crack which harms the viewing experience. This replacement is extremely difficult and requires attentive care and knowing your way around the tools. The tools required are the plastic opening tool, heat gun, and a Phillips #0 screwdriver.

  1. DfXQQUeAB5lGJT2M
    DfXQQUeAB5lGJT2M
    kOVXUDLOsoFgjypf

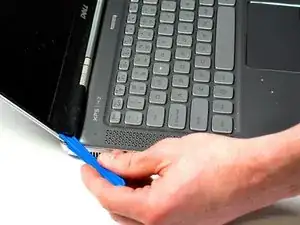

    • Using the iFixit opening tools, carefully pry up the trim around the screen.

    • It is recommended to start in a corner.

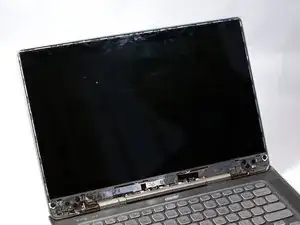

  2. sgSPyyusoSemiFUd
    sgSPyyusoSemiFUd
    KFkqNT4odIXY2uvY

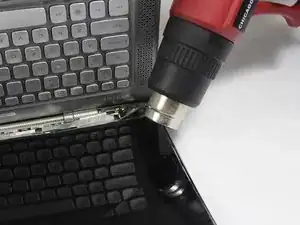

    • Using a heat gun, carefully apply heat evenly across the glass.

  3. rHQZuqOFZTmXIVL5
    rHQZuqOFZTmXIVL5
    DhABPgxBQqOmRX44

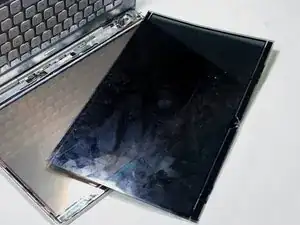

    • Using the iFixit opening tools, carefully pry the glass off the screen.

    • This is glass and will shatter if too much force is used.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Colton Niewolny

Mitglied seit: 15/02/18

411 Reputation

Ein Kommentar

to remove the black cover, use the rod of a pen pen cap. Spread both sides while pressing the top of the black cover (towards the inside of the screen). Must a little force.The closure mechanism is composed of two things that alternate every 2 cm: 1 clips that is sinking on the gray part (you have to lift the black part towards the right to take it out) then 1 rod that comes down in underneath (just stand aside - neither lift nor lower to remove)

wiwi -
