Dell XPS 15 9500 Base Panel Replacement

Geschrieben von: Connor Bassolino
  • Kommentare: 1
Dell XPS 15 9500 Base Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

1 - 3 Minuten

Einleitung

  1. R4C6wtOGfjtDHSIE

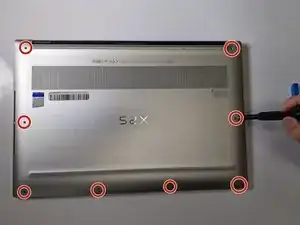

    • Remove the eight 3.0 mm screws from the bottom panel with a T5 Torx screwdriver.

    According to Dell Service Manual and my own laptop it is T5 screws. So you need to Torx T5 screwdriver.

    Serge Fedorow -

  2. SfcfXw5efNDZ3WAO
    SfcfXw5efNDZ3WAO
    D4joEpFbdIpesKd6

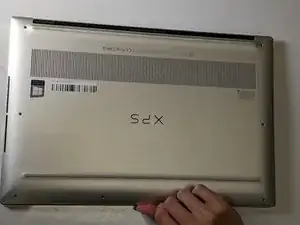

    • Gently wedge an opening tool in the gap between the base panel and chassis, and pry vertically around the perimeter until it releases from the chassis.

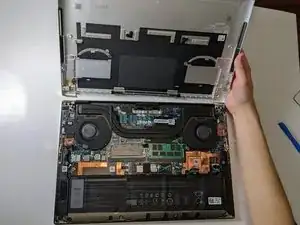

    • Lift the base panel up and away from the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
