Einleitung
Like any laptop, the Dell XPS 15 9500's fans keep crucial components cool and functional. If your laptop's performance has become increasingly sluggish, or you notice that you could probably fry an egg on the heatsink, odds are there's an issue with your fans.
First, check if the fans are spinning while your laptop's powered on. If they're spinning, check the blades for any buildup of dust or debris, and clean them appropriately.
If the fans aren't spinning whatsoever, they've likely reached the end of their lifespan, and it's time to replace them.
Before beginning, power off and unplug your laptop.
-
-

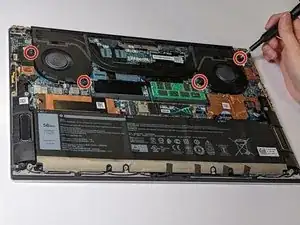

Gently wedge an opening tool in the gap between the base panel and chassis, and pry vertically around the perimeter until it releases from the chassis.
-
Lift the base panel up and away from the chassis.
-
-
-

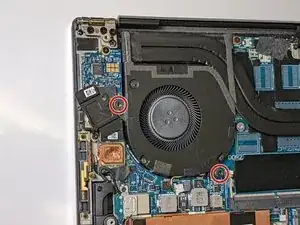

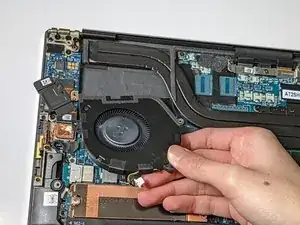

Use a Phillips #00 screwdriver to remove the two 4.0 mm screws screws from each fan (four screws total).
-
To reassemble your device, follow these instructions in reverse order.
According to Dell Service Manual and my own laptop it is T5 screws. So you need to Torx T5 screwdriver.
Serge Fedorow -
