Dell XPS 15 9510 Display Assembly Replacement

Geschrieben von: Austin Sa
  • Kommentare: 3
Dell XPS 15 9510 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. YY1uMIXAKpsoTi6r

    • Make sure the laptop is powered off and unplug all cables before beginning any repair.

    • Remove eight 3 mm screws from the underside of the case using a T5 Torx screwdriver.

  2. CsyiMEh56dOAySMo

    • The metal case of the XPS 15 9510 is extremely sharp, so be careful not to run your fingers along the edge when disassembling the laptop.

    • Wedge the case apart with a nylon spudger.

    • If the plastic one isn't possible to insert, use the metal spudger to carefully create a small gap first.

    • Once the spudger is inserted, slide it along each side of the laptop

  3. UCdtoFAuEYa1ZWTT

    • The metal case of the XPS 15 9510 is extremely sharp, so be careful not to run your fingers along the edge when disassembling the laptop.

    • Lift the back panel of the laptop off and set it aside.

    Please do not miss this warning of it being sharp...
    After opening a few laptops for my office, I have generally been fine. But after opening my own XPS... I had sliced my finger badly.

    Alipoodle M -

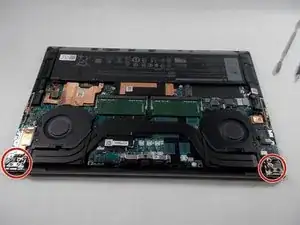

  4. 1GaA5ghYyjiw2VDo

    • Remove the four screws (eight total) from each display hinge using a Phillips #00 screwdriver.

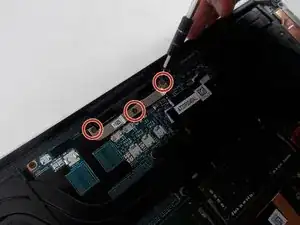

  5. BJCEU2LcufkHsATs

    • Remove three screws that connect the display using a Phillips #00 screwdriver.

    A step is missing here: remove the two small black screws on each side of the display ribbon cable, as seen on step 2 of the Dell repair steps: https://www.dell.com/support/manuals/en-...

    Justin Decker -

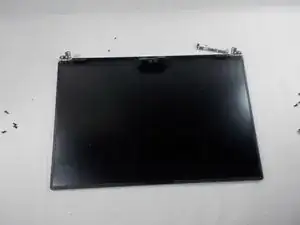

  6. MteUkxblsKRQCWnV

    • Carefully remove the display from the Dell XPS 15 9510.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Austin Sa

Mitglied seit: 30/03/22

402 Reputation

Ein Kommentar

Missing a very important step.

Two small screws above the display cable clamp - Step 5 - need to be removed. If you look at the picture in step 5, the far left red/orange circle actually contains one. You can spot it inside and at the top of the of the circle. You can't separate the display assembly without removing those 2 screws.

Joshua Kleier -
