Dell XPS 15 9530 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell XPS 15 9530 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

How to replace the 2.5" hard drive of a Dell XPS 15 9530.

  1. EUWEIOYgHSoZlFmo

    • After turning off the system, unscrew the 12 Philips screws (#1) that are on the bottom of the laptop.

    • Don't forget to unscrew the two screws hidden under the system badge!

  2. Q2RGUPuJJ3jZseyG

    • Using a spudger or some other prying tool (#1), pry off the base-cover assembly from the rest of the system.

  3. ETk3FH4SyeVvJDHc

    • Remove the screws that secure the battery to the palm-rest assembly.

    • Disconnect the battery cable from the system board.

    • Lift the battery off the palm-rest assembly.

    • After you remove the battery, turn the computer over, open the display, and press the power button for about five seconds to ground the system board.

  4. RJoYSLioYmANwgNl

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is On or in Sleep state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the palm-rest assembly.

    • Using the pull tab, disconnect the hard-drive cable from the system board.

    • Lift the hard-drive assembly off the palm-rest assembly.

  5. cqisObSJi5ZAXJrV

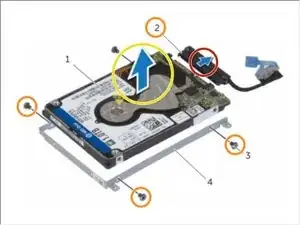

    • Disconnect the interposer from the hard-drive assembly.

    • Remove the screws that secure the hard-drive bracket to the hard drive.

    • Lift the hard drive off the hard-drive bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order with the replacement hard drive.
