Dell XPS 15 9530 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell XPS 15 9530 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 8 Minuten

Einleitung

How to replace the memory modules of a Dell XPS 15 9530.

  1. EUWEIOYgHSoZlFmo

    • After turning off the system, unscrew the 12 Philips screws (#1) that are on the bottom of the laptop.

    • Don't forget to unscrew the two screws hidden under the system badge!

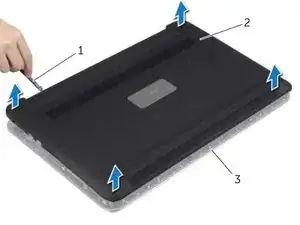

  2. Q2RGUPuJJ3jZseyG

    • Using a spudger or some other prying tool (#1), pry off the base-cover assembly from the rest of the system.

  3. ETk3FH4SyeVvJDHc

    • Remove the screws that secure the battery to the palm-rest assembly.

    • Disconnect the battery cable from the system board.

    • Lift the battery off the palm-rest assembly.

    • After you remove the battery, turn the computer over, open the display, and press the power button for about five seconds to ground the system board.

  4. njdnYkPOt15SUDVb

    • Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module connector until the memory module pops up.

    • Remove the memory module from the memory-module connector.

  5. BEiXXgglwWUxCN12

    • Align the notch on the New memory module with the tab on the memory-module connector.

    • Slide the memory module firmly into the connector at a 45-degree angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, put the battery back in and reaffix the base-cover assembly to the system.
