Dell XPS 15 9530 Screen Replacement

Geschrieben von: Larissa Omura
  • Kommentare: 0
Dell XPS 15 9530 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

25 - 30 Minuten

Einleitung

Removal of the screen will be covered in this guide. To successfully remove the battery, a #0 Phillips screwdriver, a T5 Torx screwdriver, tweezers, and a plastic spudger are needed. Be careful disconnecting cables as to not break them or their connectors.

  1. OCKKQnxJUK4QOffV
    OCKKQnxJUK4QOffV
    ZBnHG4oMjB3wgYrM
    dfwHLssScTWl2jFW

    • Using a T5 Torx screwdriver, remove ten 3mm screws.

  2. JwCduHmTBvhwZEdn
    JwCduHmTBvhwZEdn
    Cej3jSuA4E6ED2Am

    • Lift the plastic tab.

    • Remove two 3mm Phillips #0 screws under the plastic tab.

  3. bePuNqxfGJxJejU6

    • Lift the lower case off.

  4. PKVBPtGLcxvjvCu2
    PKVBPtGLcxvjvCu2
    Qf1dDcUe4yvsOeP2

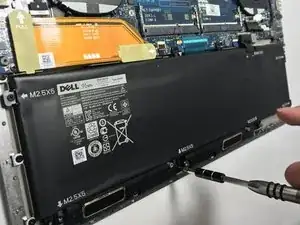

    • Using a Phillips #0 screwdriver, remove the seven 3.5mm screws that secure the battery to the palm rest assembly.

  5. AcMoTBCh2BCu2GPE

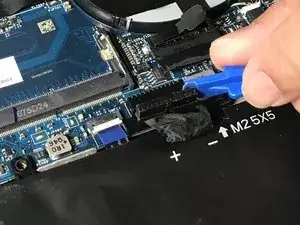

    • Disconnect the battery cable from the system board.

    • Be sure to use a plastic tool, not a metal one.

  6. 6nuYkBdRPoEcQXXc

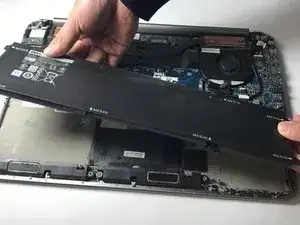

    • Lift the battery off the chassis.

  7. sWNCASlBlMpdPHDg

    • Pull lift tabs and remove the plastic that covers the hard drive to expose the hard drive.

  8. ZXMhHcJi5bP46dpW
    ZXMhHcJi5bP46dpW
    LoahyFIpmFSJDcYV

    • Using a Phillips #0 screwdriver, remove two 2.5mm screws that secure the SSD to the chassis.

  9. Trarf5t3Ff4LsOgg

    • Pull the SSD out parallel to the mainboard.

  10. LtYxsBxdoBm1BNJd
    LtYxsBxdoBm1BNJd
    IlZNUF1M4JGvgtPX

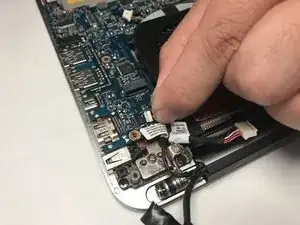

    • Unplug the screen connector.

  11. dAs5drnVQLMbweGg
    dAs5drnVQLMbweGg
    qtXhQJpfpgXID1YB

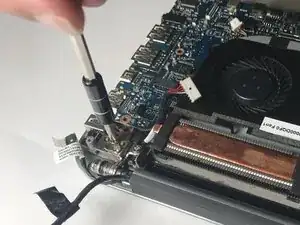

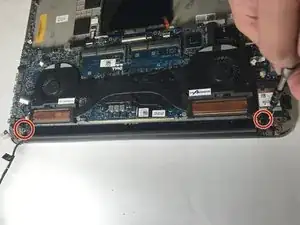

    • Using a Phillips #0 screwdriver, remove the four 4mm screws holding in the screen hinges.

  12. icdQmJkERnBGEGoR

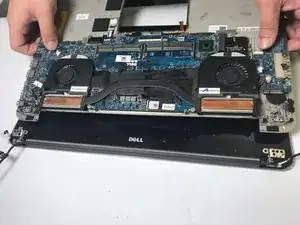

    • Pull chassis away from screen assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
