Dell XPS 15 9530 WiFi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 4 Minuten

Einleitung

The much complained-about Killer BCM4352 WiFi card that plagues this laptop is thankfully easy to replace. The E-key M.2 slot on the motherboard should take almost any modern WiFi card, provided it uses PCIe (like the AX200) and not CNVi (like the AX201).

  1. OCKKQnxJUK4QOffV
    OCKKQnxJUK4QOffV
    ZBnHG4oMjB3wgYrM
    dfwHLssScTWl2jFW

    • Using a T5 Torx screwdriver, remove ten 3mm screws.

  2. JwCduHmTBvhwZEdn
    JwCduHmTBvhwZEdn
    Cej3jSuA4E6ED2Am

    • Lift the plastic tab.

    • Remove two 3mm Phillips #0 screws under the plastic tab.

  3. bePuNqxfGJxJejU6

    • Lift the lower case off.

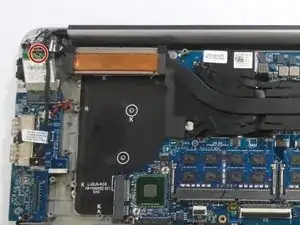

  4. 6PfkWqaBkNYedEDh

    • Use a Phillips #0 screwdriver to remove the screw holding the WiFi card down. Be careful not to lose the metal retainer holding the antenna cables down.

    • Without applying too much force, pop out the antenna cables and remove the card.

    • Insert the new card, and reattach the antenna cables. The black cable connects to the main antenna slot (marked with a solid triangle) and the white connects to the auxiliary (marked with an empty triangle).

Abschluss

To reassemble your device, follow these instructions in reverse order.
