Dell XPS 15 9560 Motherboard Replacement

Geschrieben von: Jada Houser
  • Kommentare: 3
Dell XPS 15 9560 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

24

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

If your Dell XPS 15 9560 boots up with the BIOS menu, produces a beeping pattern upon failure to boot, or has been experiencing hardware and software malfunctioning with all other fixes ruled out, there may be an irreparable issue with the motherboard and it will need to be replaced.

The motherboard is the central hub of the laptop. It distributes power throughout the laptop and allows the laptop’s hardware components to communicate with the processor.

Damage to a laptop’s body or damage by liquids leaking into a laptop can lead to a damaged motherboard. A motherboard may also fail over time as it ages. This is the worst case scenario for many laptops as a damage motherboard means the entire computer is no longer operable.

Before beginning, backup all important files to an external hard drive or a USB. Additionally, make sure the laptop is off and the laptop is disconnected from any power source.

  1. jUKaXAtFqXsZ1xJL

    • Using a T5 Torx screwdriver, remove ten 4.0 mm screws from the back panel of the laptop.

  2. OWsK3uFQ2DGW6vdZ

    • Using a Phillips #2 screwdriver, remove two 5.0 mm screws underneath the XPS badge door.

  3. Kt2Tg1sk3VDMyqZS

    • Wedge the scribe between the backplate and remove the bottom base cover.

  4. BMDNuJGST1pYSydH

    • Using a T5 Torx screwdriver, remove the six 4.0 mm screws.

    On the Dell XPS 15 9560 that I just did a battery replacement on the battery was not held in by torx screws. It was the larger 97wh battery and was held in by 6 phillips head screws. I was able to get them out with a PH1 bit.

    Nick Hamblen -

    Seconded. In the photo the author isn't even holding a torx driver.

    Gregory Robben -

  5. EIPhbwKanoubPUAV

    • Unplug the battery cable.

  6. 42vITSAgbhUs33vj

    • Remove the battery.

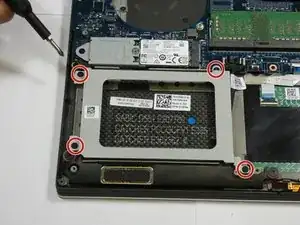

  7. 4XGwZrNCdcDsdWQt

    • Using a Phillips #0 screwdriver, remove four 4.0 mm screws of the hard drive bracket.

    • Unplug the hard drive cable.

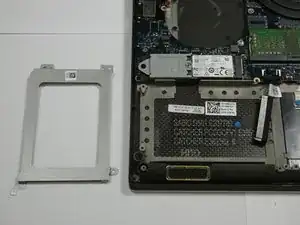

  8. FlsGFdpXFwfoekMv

    • Remove the hard drive bracket. Then, unplug and remove the hard drive.

  9. GARThfhjKxwLDEgY

    • Using a Phillips #2 screwdriver, remove a single 3.0 mm screw from the SSD bracket.

  10. 3GWVGggTcdbOofZR

    • Using the same Phillips #2 screwdriver, unscrew and remove one 2.0 mm wafer screw from the SSD bracket.

  11. AlvfkU6VwrsEDBSe

    • Pull out and separate the SSD bracket and SSD, replacing the old SSD with a new one.

  12. CoEkU35JeRuMCjg2

    • Using the Phillips #2 screwdriver, remove the single 4.0 mm screw securing the wireless card base to the motherboard.

  13. GBiDZUgPwebD1UUE

    • Disconnect the wireless card cables from the wireless card.

  14. sKayXbsd4RPP3rUU

    • Slide the wireless card out of its slot.

  15. iNHfju6LvakFkDMy

    • Using a T5 Torx screwdriver, remove two 4.0 mm screws.

    Typo: These are standard phillips 2 on my laptop and on the picture

    Rémy Gary -

  16. pw2LWGHu32ymZB3R

    • Unplug the fan cable.

  17. dkqo5YlGHrmn3MuH

    • Carefully remove the left-side fan.

  18. yyovZFTSaLjLRPVW

    • Using a T5 Torx screwdriver, remove two 4.0 mm screws.

    • Unplug the fan cable.

  19. YodqtsKs1HY6JFde

    • Remove the right-side fan.

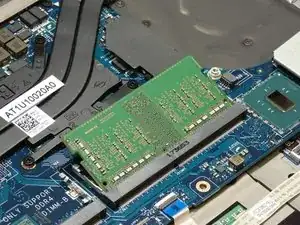

  20. w4WDgcBA2eQlLH2f
    w4WDgcBA2eQlLH2f
    XebeVylx3R1SMF1c

    • Pull the metal clips surrounding the RAM stick outward.

    • The RAM will pop out.

    • Remove the RAM stick from the device.

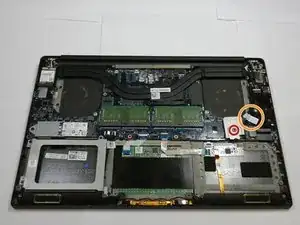

  21. CcNvvH5RW6qCpKHN

    • Using a screwdriver, unscrew one 5.0 mm Torx T5 bracket screw.

    • Remove the bracket and unplug and loosen the LCD cable.

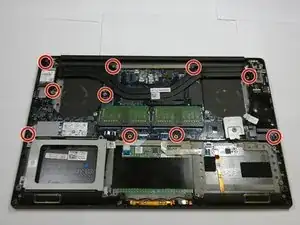

  22. RfHbmdicSJ5IgFE5

    • Using a T5 Torx screwdriver, remove ten 4.0 mm screws securing the motherboard to the device.

  23. b4uDMqgA6a6BkW6m

    • From right to left, unplug the bottom motherboard cables, DC jack cable, speaker cable.

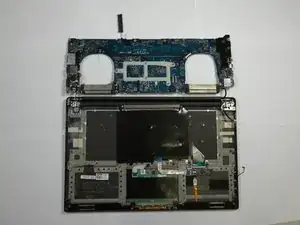

  24. bCr2n4UCLkeideLt

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
