Dell XPS 15 9560 Solid State Drive (SSD) Replacement

Geschrieben von: Frederick Rowell
  • Kommentare: 0
Dell XPS 15 9560 Solid State Drive (SSD) Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Whether to replace the memory storage of you laptop with an upgraded memory drive, or to replace one that may be damaged, this guide will instruct on how to remove and replace the SSD (Solid State Drive) in the Dell XPS 15 9560.

Some laptops allow for a combination of an HDD (Hard Disk Drive) and an SSD or either one for their memory storage. SSDs have a reputation for being more powerful and smaller than HDDs, and they do not use any moving parts to access data like an HDD would.

Before beginning, make sure the laptop is off and the laptop is disconnected from any power source.

  1. jUKaXAtFqXsZ1xJL

    • Using a T5 Torx screwdriver, remove ten 4.0 mm screws from the back panel of the laptop.

  2. OWsK3uFQ2DGW6vdZ

    • Using a Phillips #2 screwdriver, remove two 5.0 mm screws underneath the XPS badge door.

  3. Kt2Tg1sk3VDMyqZS

    • Wedge the scribe between the backplate and remove the bottom base cover.

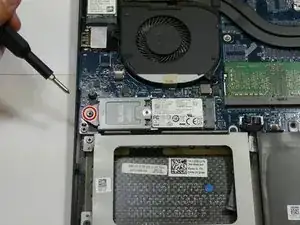

  4. GARThfhjKxwLDEgY

    • Using a Phillips #2 screwdriver, remove a single 3.0 mm screw from the SSD bracket.

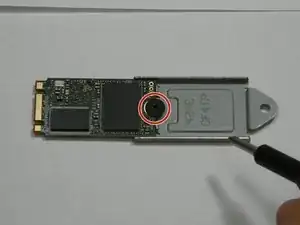

  5. 3GWVGggTcdbOofZR

    • Using the same Phillips #2 screwdriver, unscrew and remove one 2.0 mm wafer screw from the SSD bracket.

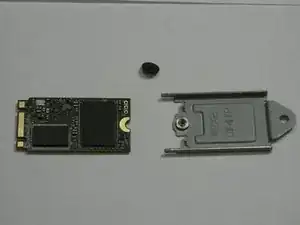

  6. AlvfkU6VwrsEDBSe

    • Pull out and separate the SSD bracket and SSD, replacing the old SSD with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
