Dell XPS 15 9570 Wireless Card Replacement

Geschrieben von: Margaret Combs
  • Kommentare: 0
Dell XPS 15 9570 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide demonstrates how to replace the Wi-Fi card of your Dell XPS 15 9570.

  1. XDM21s2U3cke3sGH

    • Make sure your device is powered off and unplugged before starting

    • Flip the device over so the base cover of the computer is facing upwards.

  2. d1TkpNtEmj1gYkSq
    d1TkpNtEmj1gYkSq
    JvcaxuB3RfDfEGdd
    XwugwAd2HEwvmXtf

    • Using a Torx T5 screwdriver, remove the ten 3 mm screws on the back.

  3. YrsOILKZD1PRTYwJ
    YrsOILKZD1PRTYwJ
    Fe25FODYZtLlMT2f

    • Flip open the system badge and with a Phillips #00, remove the two 8.5 mm screws.

  4. KVZHHmymMGCjCZTD

    • Lift the back cover off of the device.

  5. MGkiNhGZ4fmajPQR
    MGkiNhGZ4fmajPQR

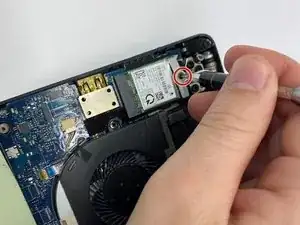

    MsTp2dHnHhRuFFQh

    • Using a Phillips #00 screwdriver, loosen the captive screw holding the wireless card bracket in place.

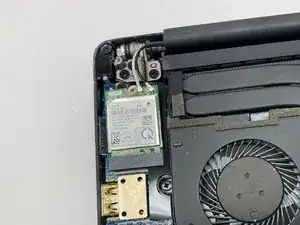

  6. ksiINHTL5ejZLA1d

    • Lift the wireless card bracket off of the wireless card.

  7. OuBr3yxMkWnmI4iN

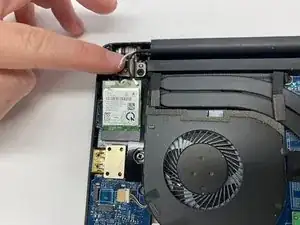

    OuBr3yxMkWnmI4iN

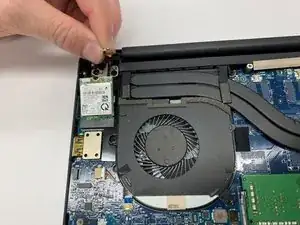

    3MZCS1vCk2DEPahO

    • Using a spudger, disconnect the coaxial antenna cables from the Wi-Fi card by popping them gently off.

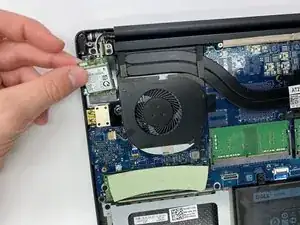

  8. OSsqj4Qd2JJX1pZD

    • Carefully remove the wireless card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
